Introduction
All power saving LED products comply with the international standards for performance and safety. (IEC 61612, IEC 62650, IEC 62772 Ed1). It also complies with the Egyptian Standards issued by the Egyptian Organization for Standardisation and Quality EOS .
×
AIO LED Products
Main Features of the AIO LED Lamps
- Power factor: > 0.9
- Energy saving efficiency level: A++
- Lifetime: >25000 operating hours
- Warranty Certificate: 2 years for the power supply and LED PCBs
- Different level of color correlated temperature (CCT), such as yellow (2700K-5000K
- Energy saving for the electricity power consumption: > 80%
- Friend to the environment and recyclable
- Negligible heat emission
- Colour rendering index (CRI) ≥80

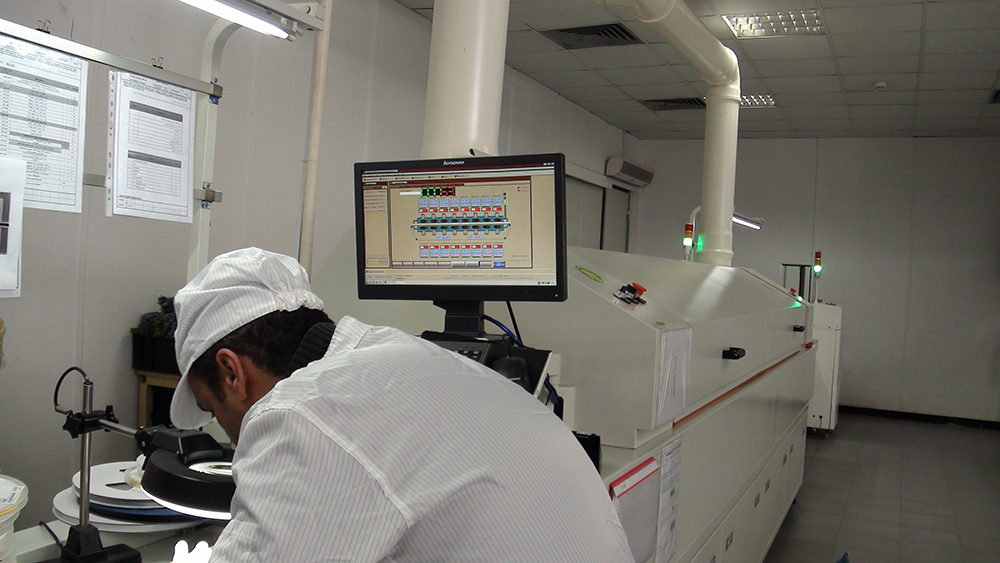

SMT Machine & Quality Laboratory
Photometry Laboratory
LED Lamps and Luminaires Production Factory
Printing on printed Circuit Boards
Laser Engraving on the LED Lamp
Producing the Printed Circuit Boards PCB

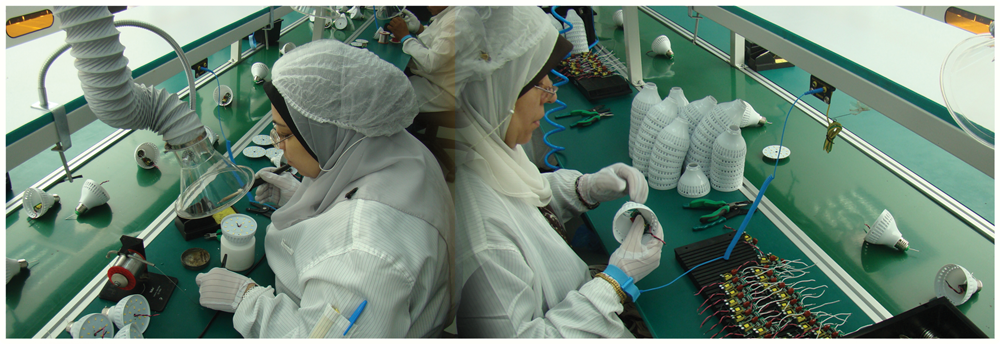

LED Assembly Line
LED Assembly Line
LED Assembly Line
Production Line for LED Light Luminaires and Square LED Panels
Production Line for Square LED Panels
Production Line for LED Light Luminaires
Production Line for Street LED Light Luminaires
Production Line for Square LED Panels
Production Line for Square LED Panels
Production Line for Square LED Panels
Measuring and Testing Laboratories

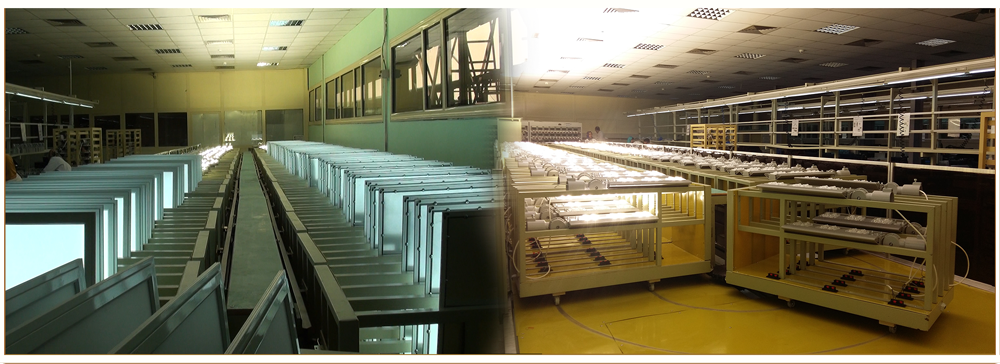

Life Time Test for LED Light Luminaires
LED Tests
Inspection of the LED Lamps
Inspection of the LED Lamps

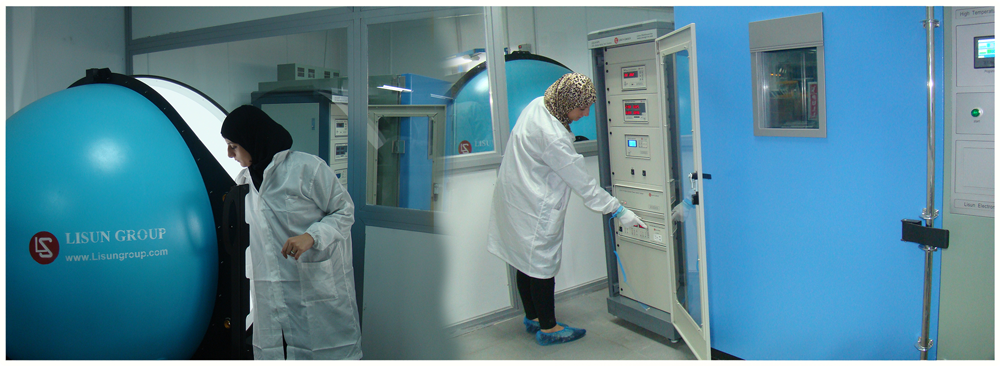

Photometry Test Laboratory for LED Light Luminaires
Environmental Test Laboratory for LED Light Luminaires
Energy Saving LED Light Systems
- LED SPOT GU10, 5W
- LED LAMP CANDLE 6W, E14
- LED SPOT 7W
- LED LAMP BULB 9W, E27
- LED LAMP BULB 12W, E27
- LED LAMP BULB 15W, E27
- LED DOWN LIGHT 18W
- LED LAMP BULB 40W, E40- E27
- LED LAMP TUBE 60CM, 9W, T8
- LED PANEL LIGHT 60*60 42W
- LED LAMP TUBE 120CM, 18W, T8
- FLOOD LIGHT 50W,100W
- HIGH BAY (50-100-150) W
- LED STREET LUMINAIRE (60-110-130-170)W
- LED STREET LUMINAIRE (65-105)W
- LED STREET LUMINAIRE , gardens 100 W
- LED STREET LUMINAIRE , GLA (45-75) W
- LED STREET LUMINAIRE , GLB (85-120) W
- LED STREET LUMINAIRE , GLC (130-150) W
- LED STREET LUMINAIRE , GLD (160-200) W
- LED STREET LUMINAIRE , Optic Egy UMAXI (225-315) W

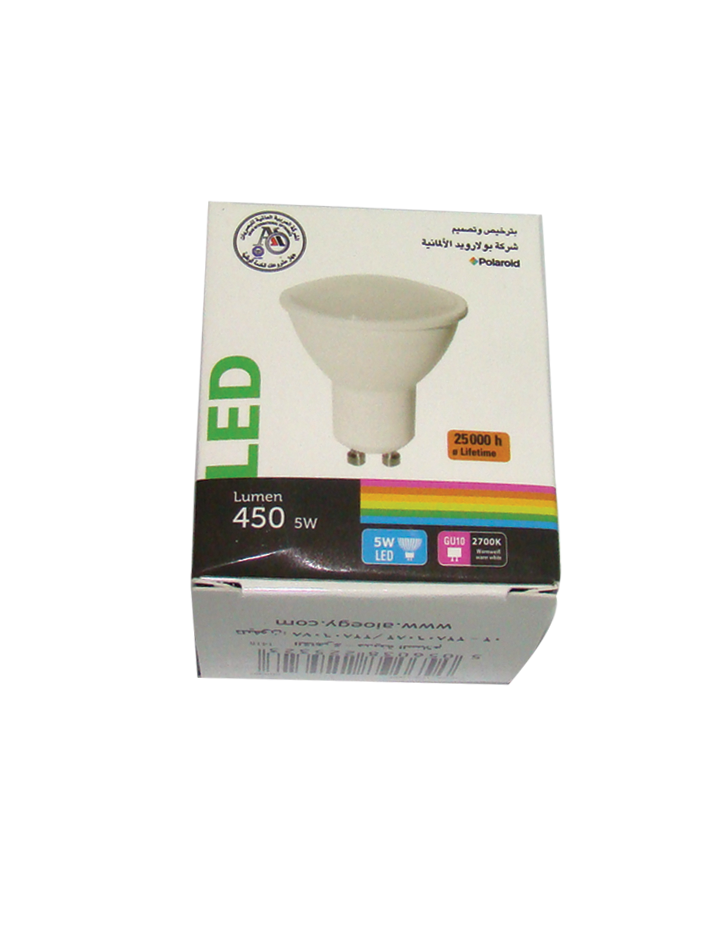

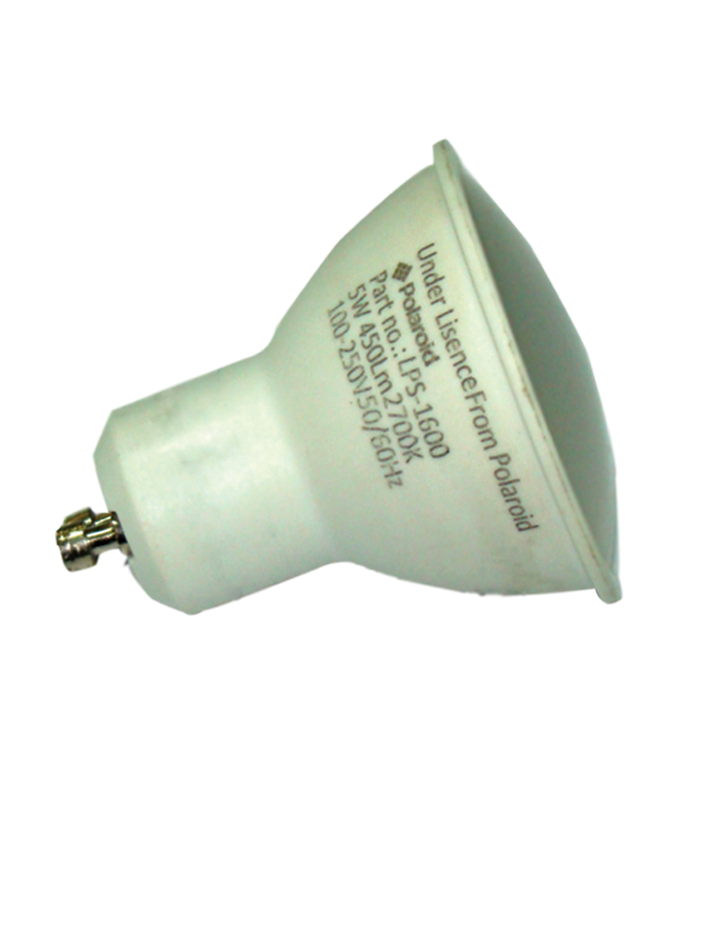

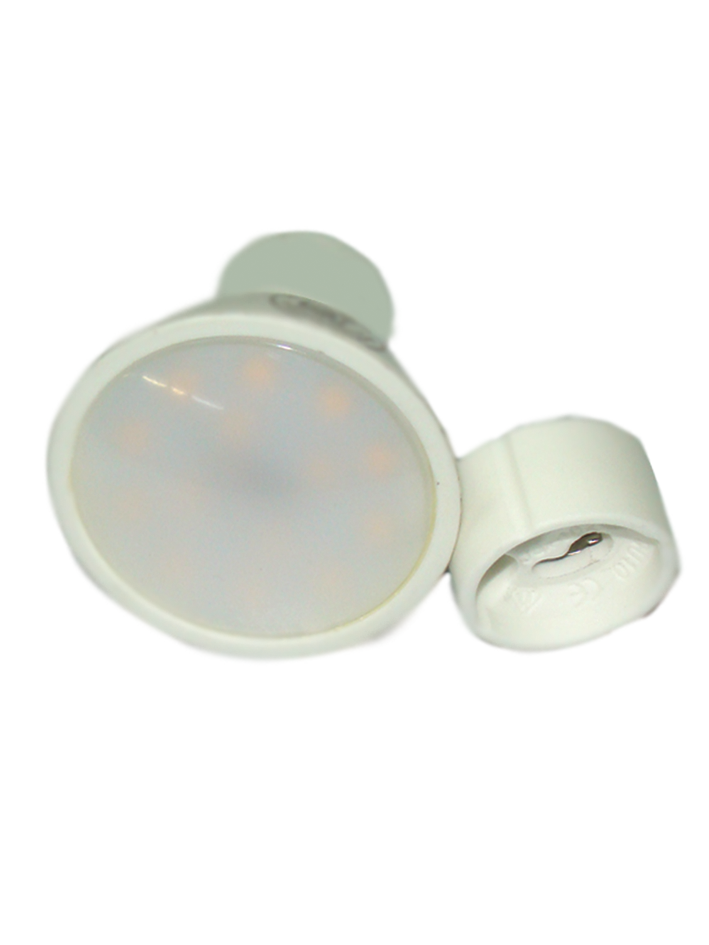

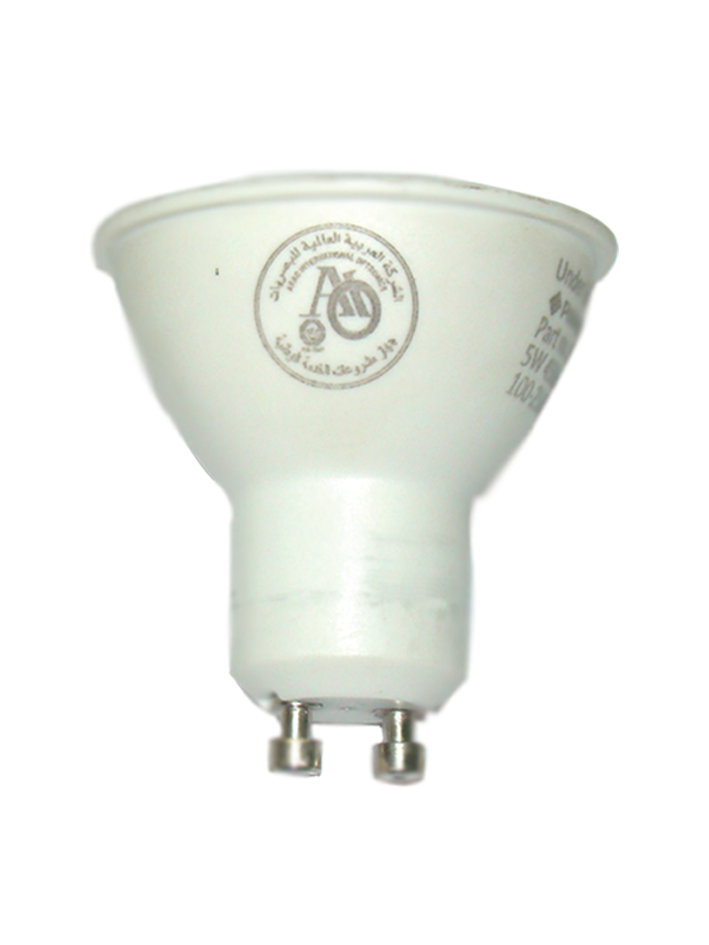

LED SPOT GU10, 5W
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 450Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- E E L : A+
- CRI : ≥80

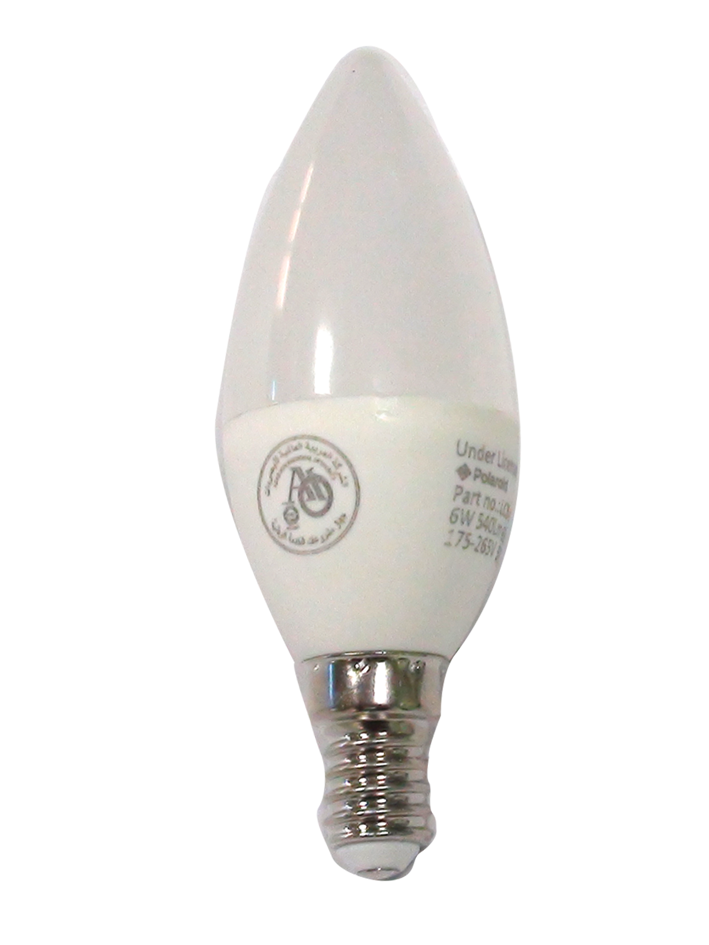

LED LAMP CANDLE 6W, E14
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 540Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80

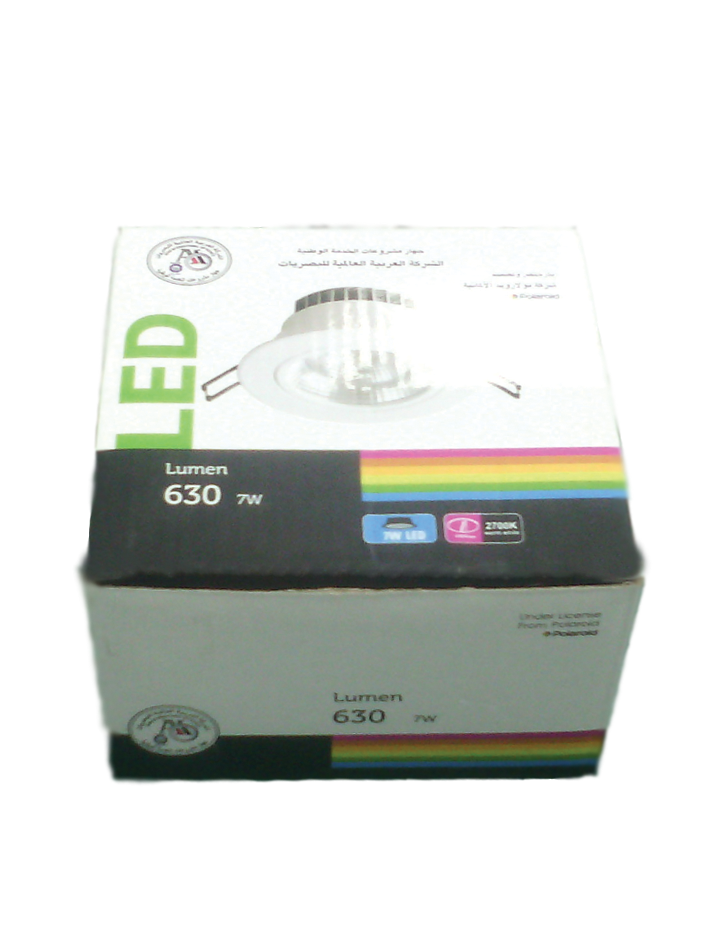

LED SPOT 7W
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 630Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥ 0.80

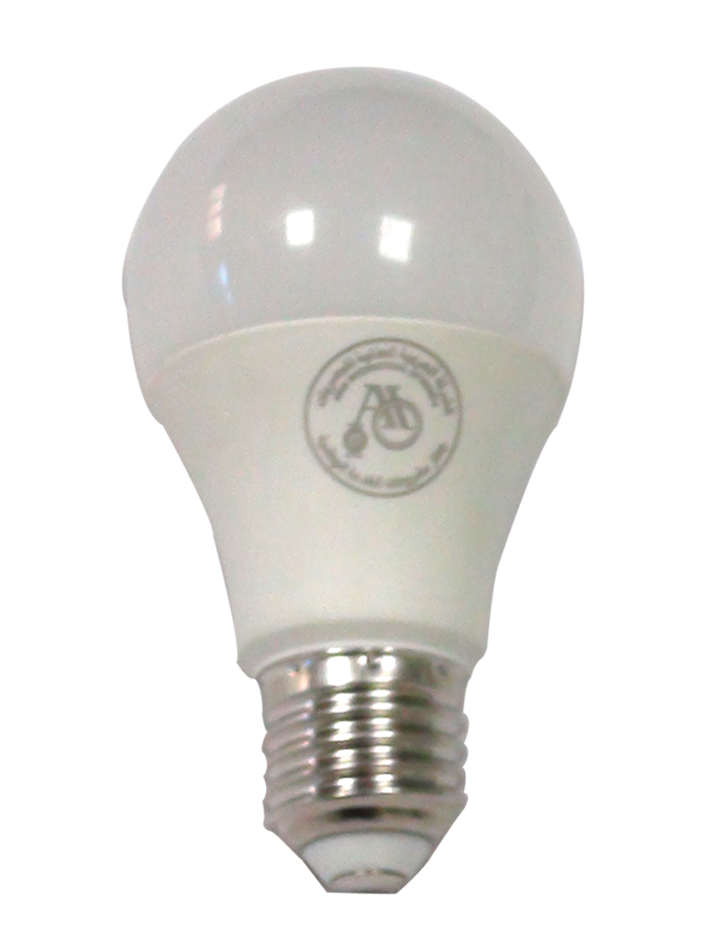

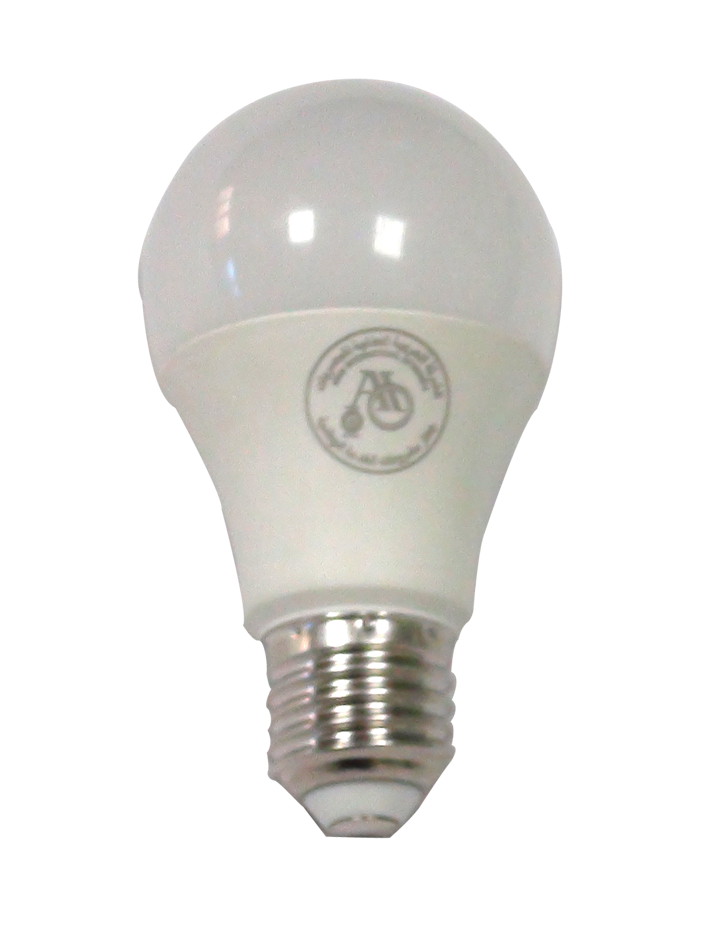

LED LAMP BULB 9W, E27
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 850Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80
LED LAMP BULB 12W, E27
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 1080Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80

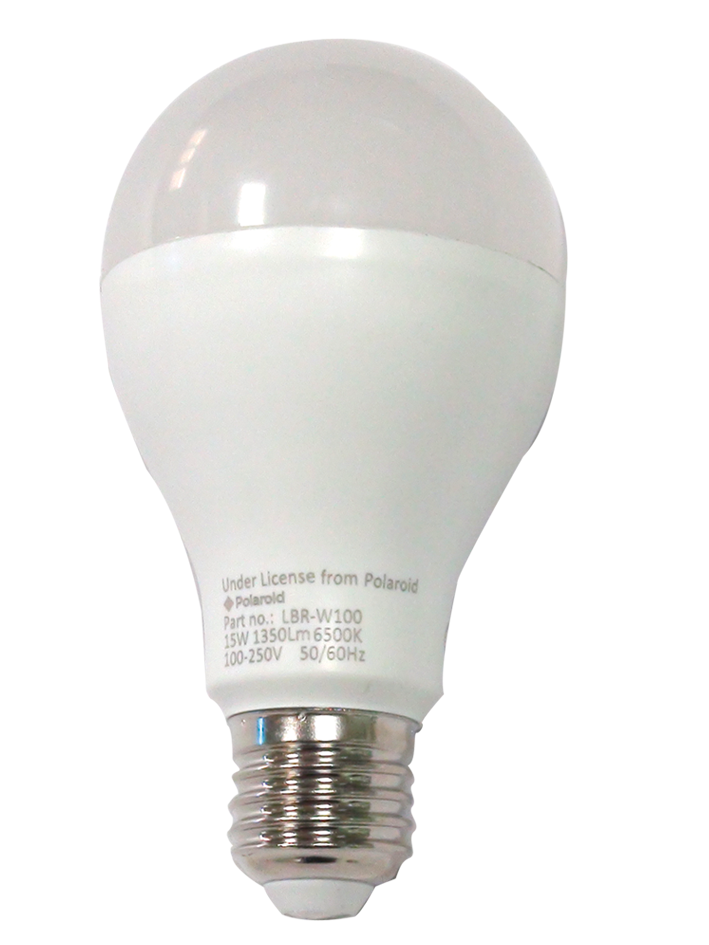

LED LAMP BULB 15W, E27
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 1350Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80
LED DOWN LIGHT 18W
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 1800Lm
- Life Time : 25000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80
- Dim : 255 mm
LED LAMP BULB 40W, E40- E27
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 3600 Lm
- Life Time : 25000 Hrs
- C.C.T : 6500 k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80
- Housing : Aluminum

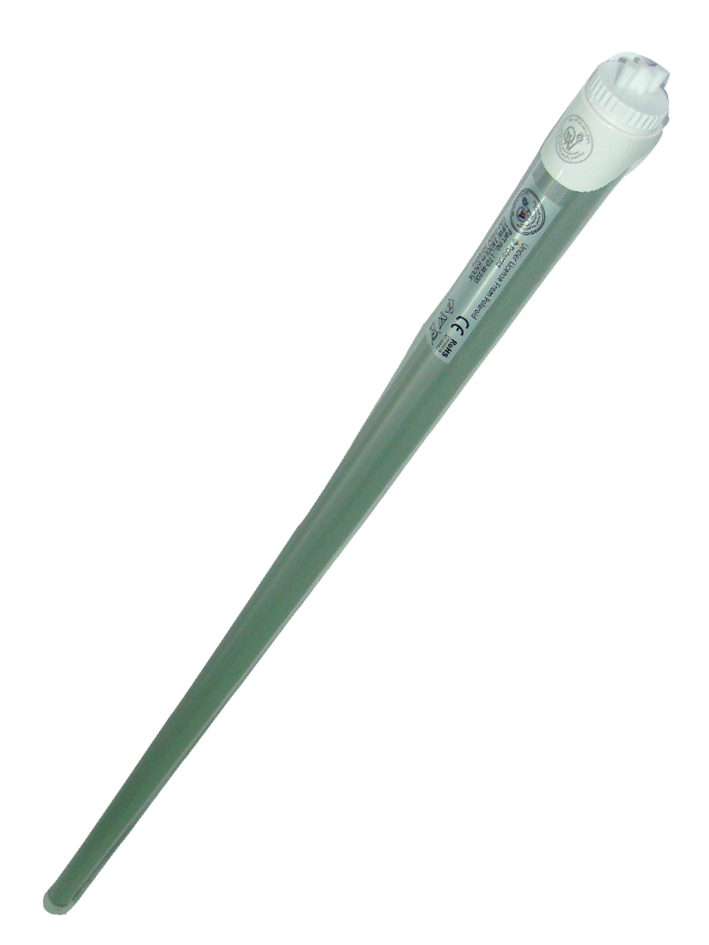

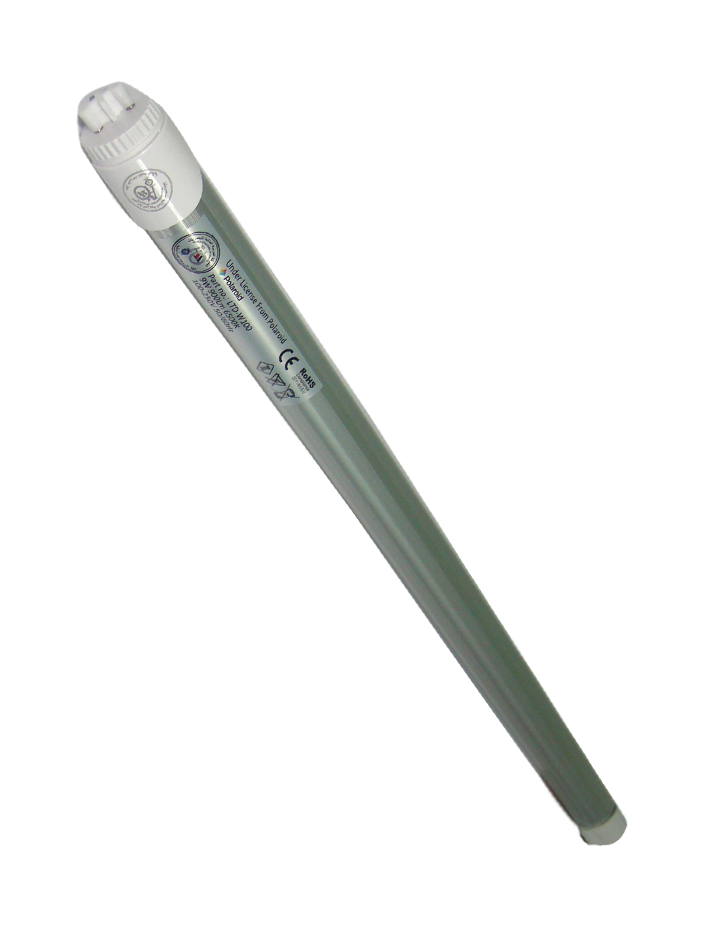

LED LAMP TUBE 60CM, 9W, T8
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 900 Lm
- Life Time : 25000 Hrs
- C.C.T : 6500 k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80

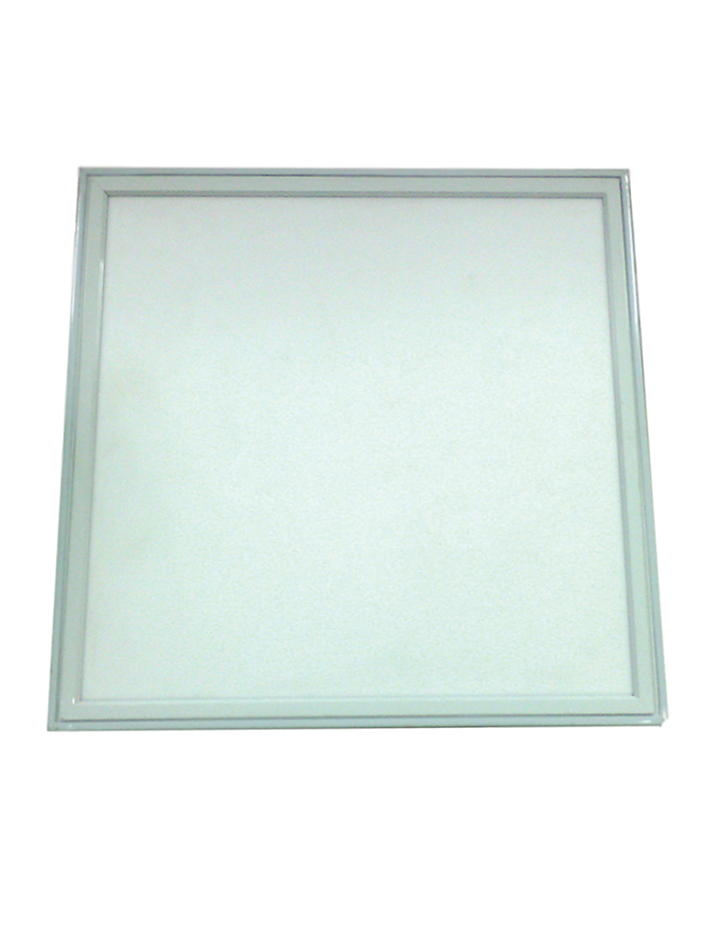

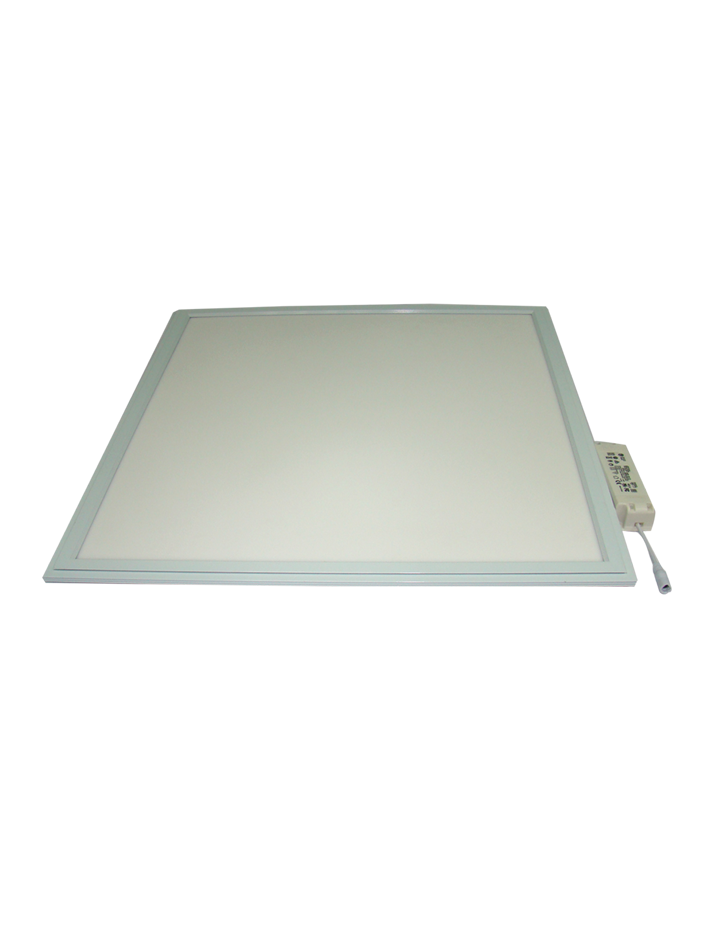

LED PANEL LIGHT 60*60 42W
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 4000 Lm
- Life Time : 25000 Hrs
- C.C.T : 6500 k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80
- Dimension : 600×600×10 mm

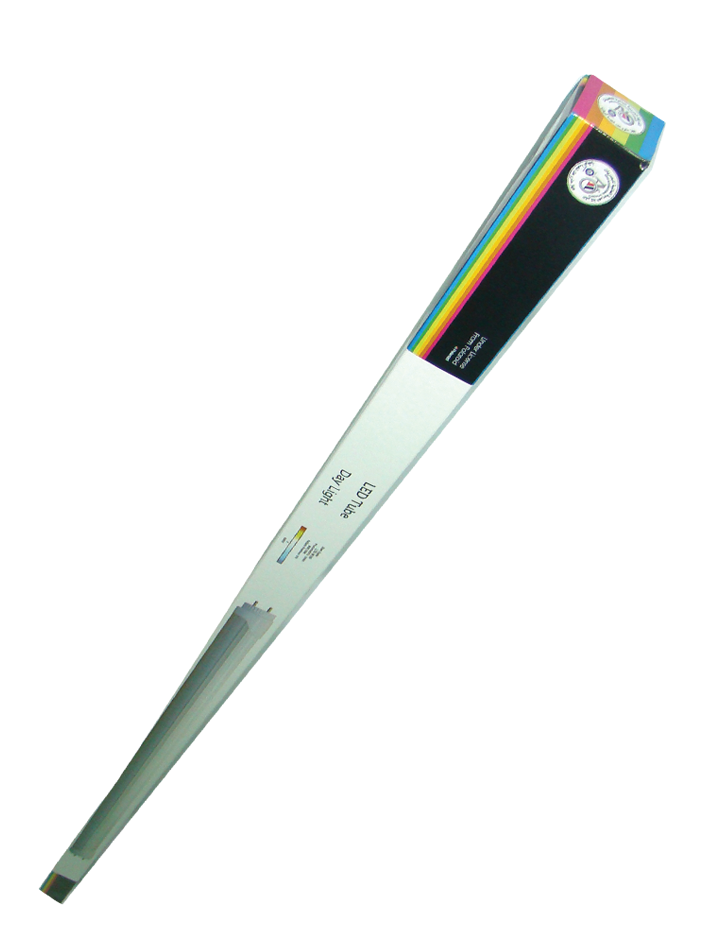

LED LAMP TUBE 120CM, 18W, T8
Technical Specification
- AC Voltage : (100-250)V,AC 50-60HZ
- Power Factor : ≥ 0.9
- Lumen : 1800 Lm
- Life Time : 25000 Hrs
- C.C.T : 6500 k
- Ambient Temperature : -5 To +55˚ C
- Humidity : > 65%
- EEL : A+
- CRI : ≥80

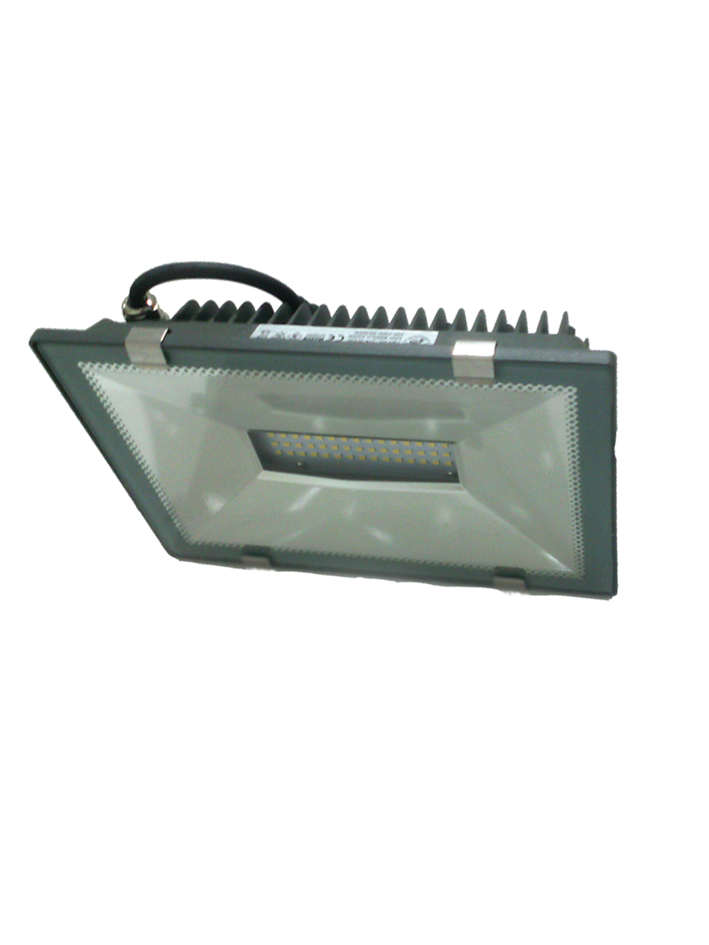

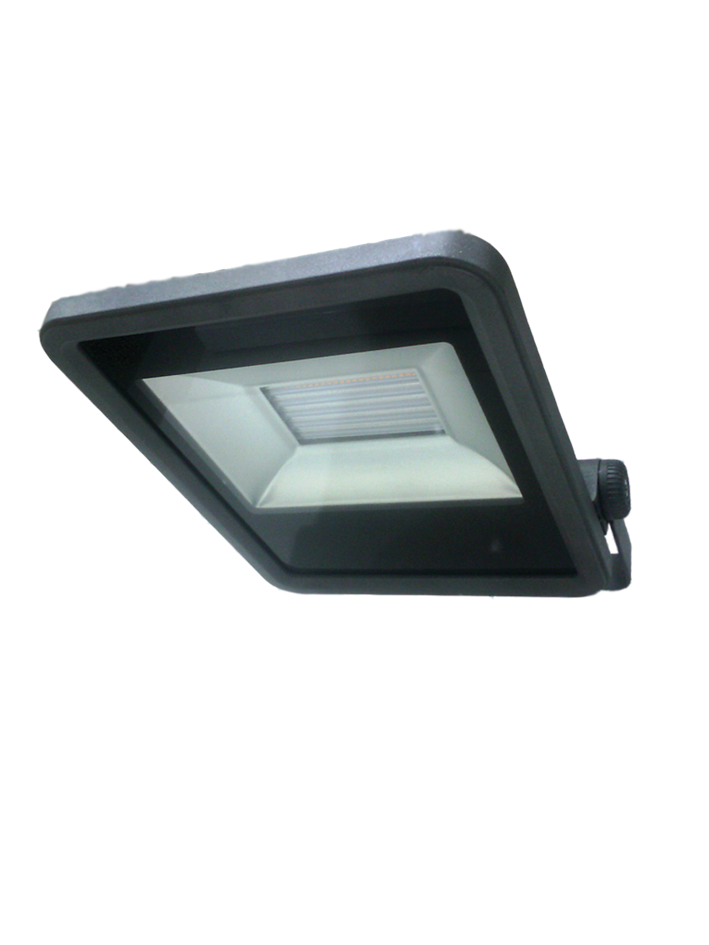

FLOOD LIGHT 50W,100W
Technical Specification
- Operating Voltage Range : (175-264) V-AC 50-60HZ
- Power Factor : ≥ 0.95
- Lumen Efficacy : 100 Lm/W
- Life Time : 30,000 Hrs
- C.C.T : (2700-6500) k
- Ambient Temperature : -5 To +55˚ C
- Power W : 100W and 50W
- LED Light-Source : SMD
- CRI : ≥80
- Housing : Aluminum Alloy
- Beam Angle : 120, 180
- Front Cover type : Clear
- Certificate : CE, ROHS

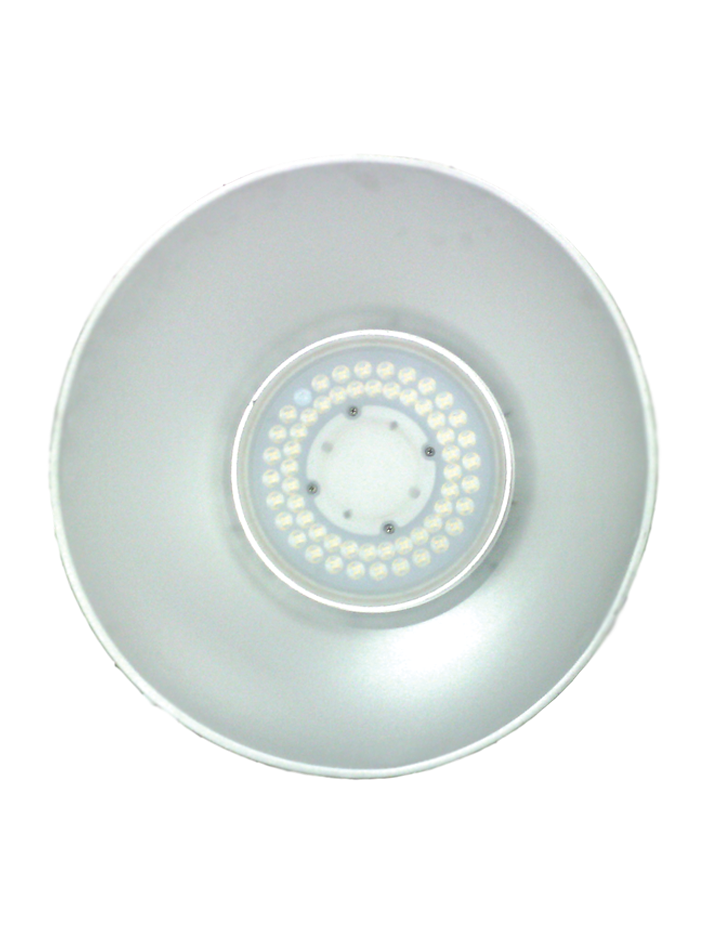

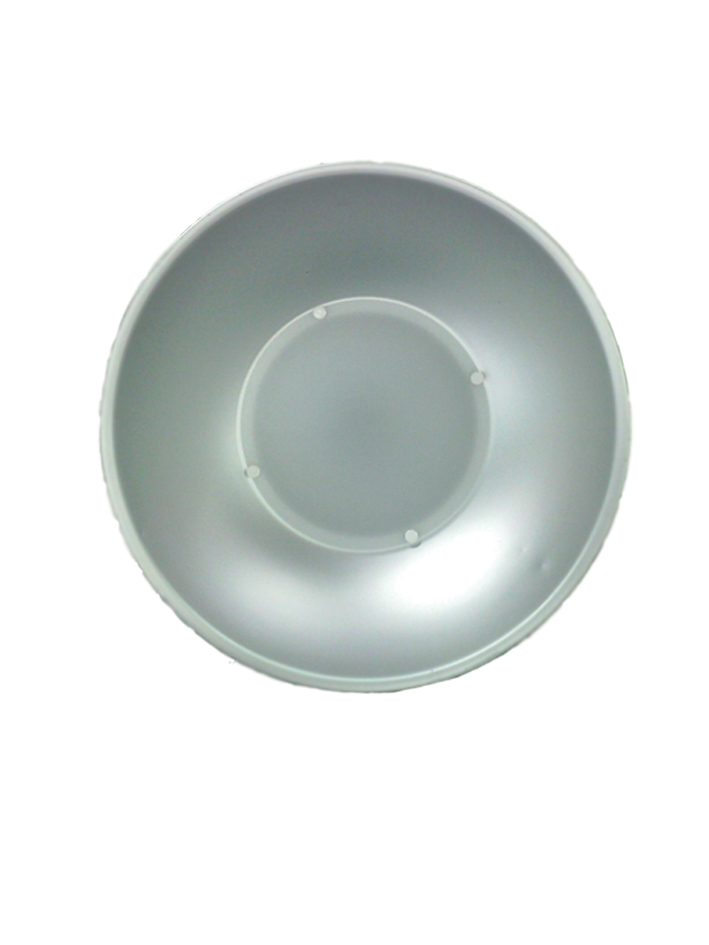

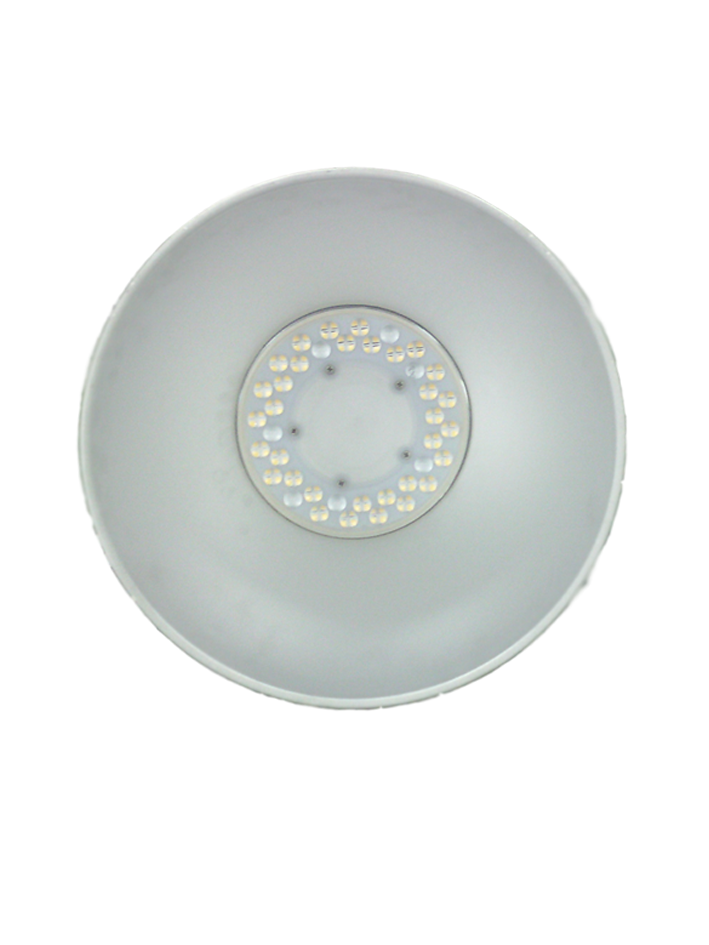

HIGH BAY (50-100-150) W
Technical Specification
- Operating Voltage Range : (175-264) V-AC 50-60HZ
- Power Factor : ≥ 0.95
- Lumen Efficacy : 100 Lm/W
- Life Time : 25,000 Hrs
- C.C.T : (6000-6500) k
- Ambient Temperature : -5 To +55˚ C
- Power W : 100W and 50W
- LED Light-Source : SMD-OSRAM-DURIS(SMD)
- CRI : ≥80
- Certificate : CE, ROHS

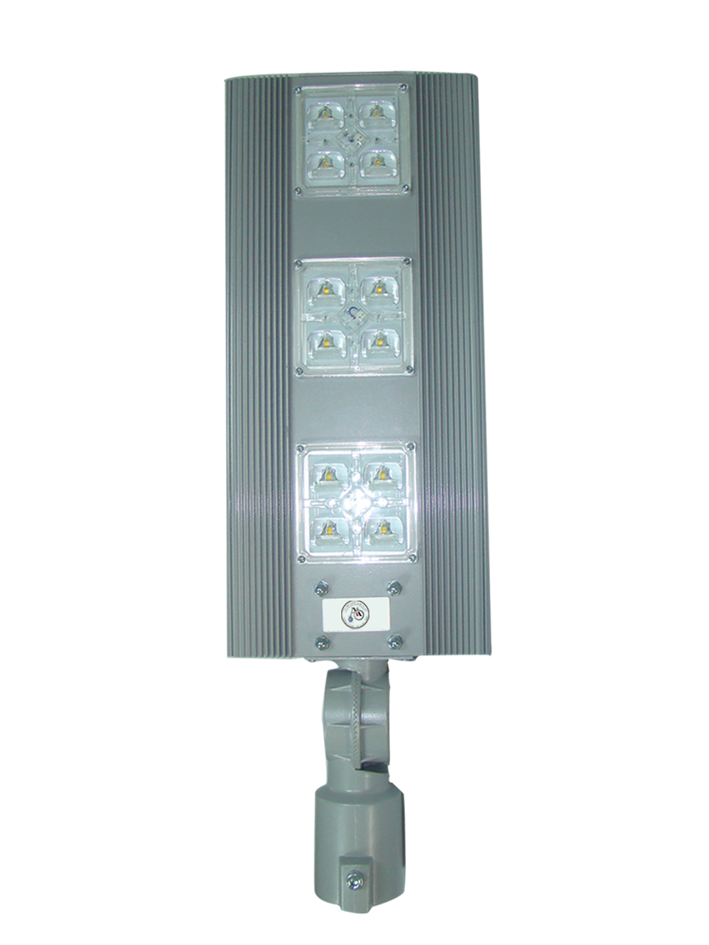

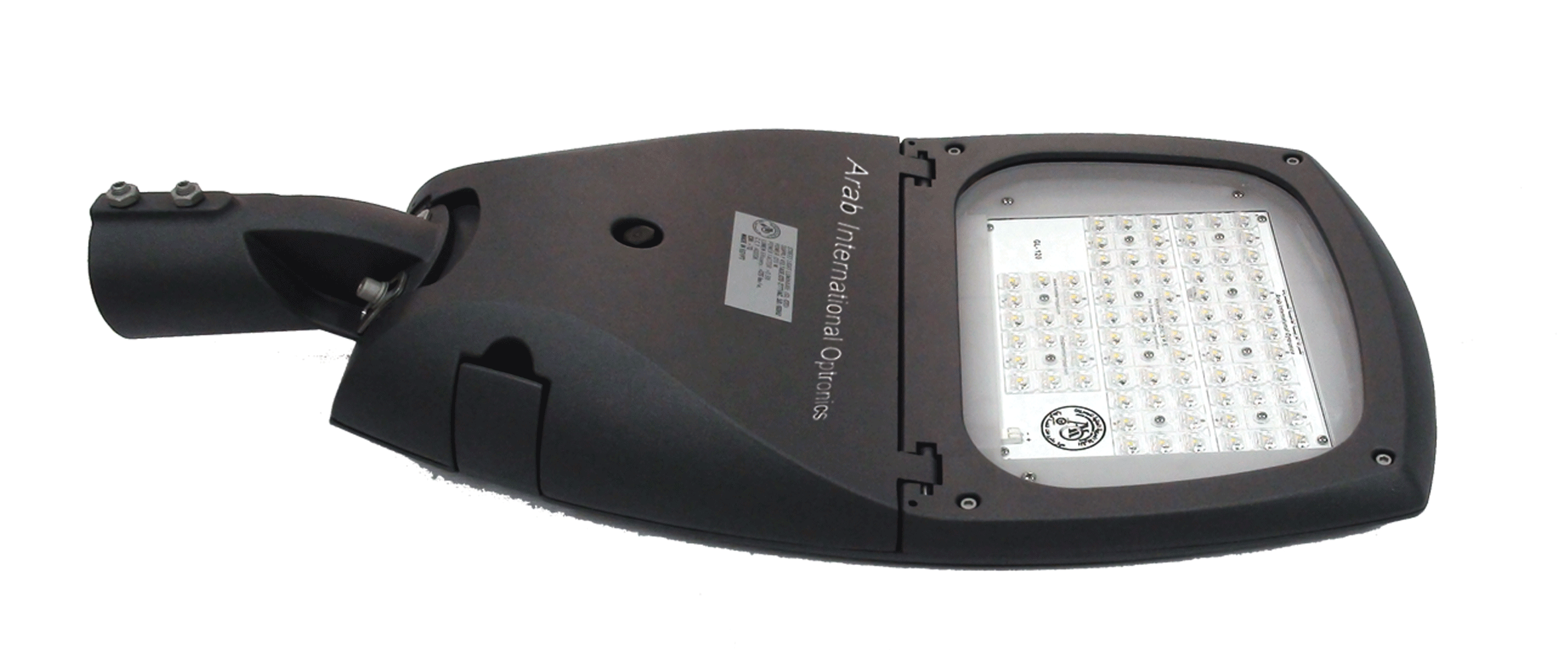

LED STREET LUMINAIRE (60-110-130-170)W
Technical Specification
- Operating Voltage Range : 220V (120-277) V-AC
- Luminous flux over time : 90% After 60,000 Hrs
- Power Factor : ≥ 0.95
- LENS : PMMA/ SILICON
- Lumen Efficacy : 90 Lm/W
- Life Time : 65,000 Hrs
- C.C.T : (3500-6500) k
- Ambient Temperature : +55˚ C
- Driver : PHILIP-SOSRAM
- Overheating protection : Included
- LED Chip-Type : OSRAM- DURIS
- Impact Resistance : IK08
- THD : ≤ 15%
- CRI : ≥80
- Housing : Aluminum
- Weight : ±5000gm
- Tilt Angle : 0-90

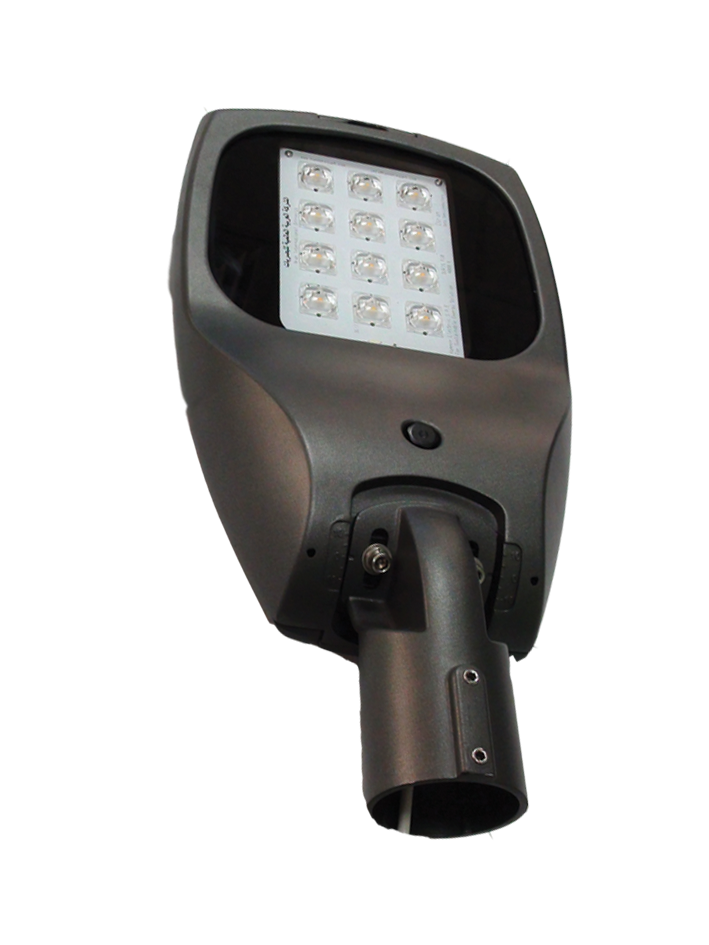

LED STREET LUMINAIRE (65-105)W
Technical Specification
- Operating Voltage Range : 220V (120-277) V-AC
- Luminous flux over time : 90% After 70,000 Hrs
- Power Factor : ≥ 0.95
- LENS : PMMA/ SILICON
- Lumen Efficacy : 90 Lm/W
- Life Time : 65,000 Hrs
- C.C.T : (3500-6000) k
- Ambient Temperature : +55˚ C
- Driver : PHILIP-SOSRAM
- Overheating protection : Included
- Impact Resistance : IK09
- LED Chip-Type : OSRAM- DURIS
- THD : ≤ 15%
- Housing : Aluminum
- CRI : ≥70
- Weight : 6000gm
- Tilt Angle : 0-15
LED STREET LUMINAIRE , gardens 100 W
Technical Specification
- Operating Voltage Range : 220V (120-277) V-AC
- Luminous flux over time : 90% After 60,000 Hrs
- Power Factor : ≥ 0.95
- Lumen Efficacy : 100 Lm/W
- Life Time : 65,000 Hrs
- C.C.T : (3500-6500) k
- LENS : SILICON-LEDIL
- Ambient Temperature : +55˚ C
- Driver : ORASM
- Overheating protection : Included
- LED Chip-Type : OSRAM- DURIS
- Impact Resistance : IK08
- CRI : ≥ 0.80
- THD : ≤ 15%
- Housing : Aluminum
- Weight : 5000gm
- Tilt Angle : 0-90

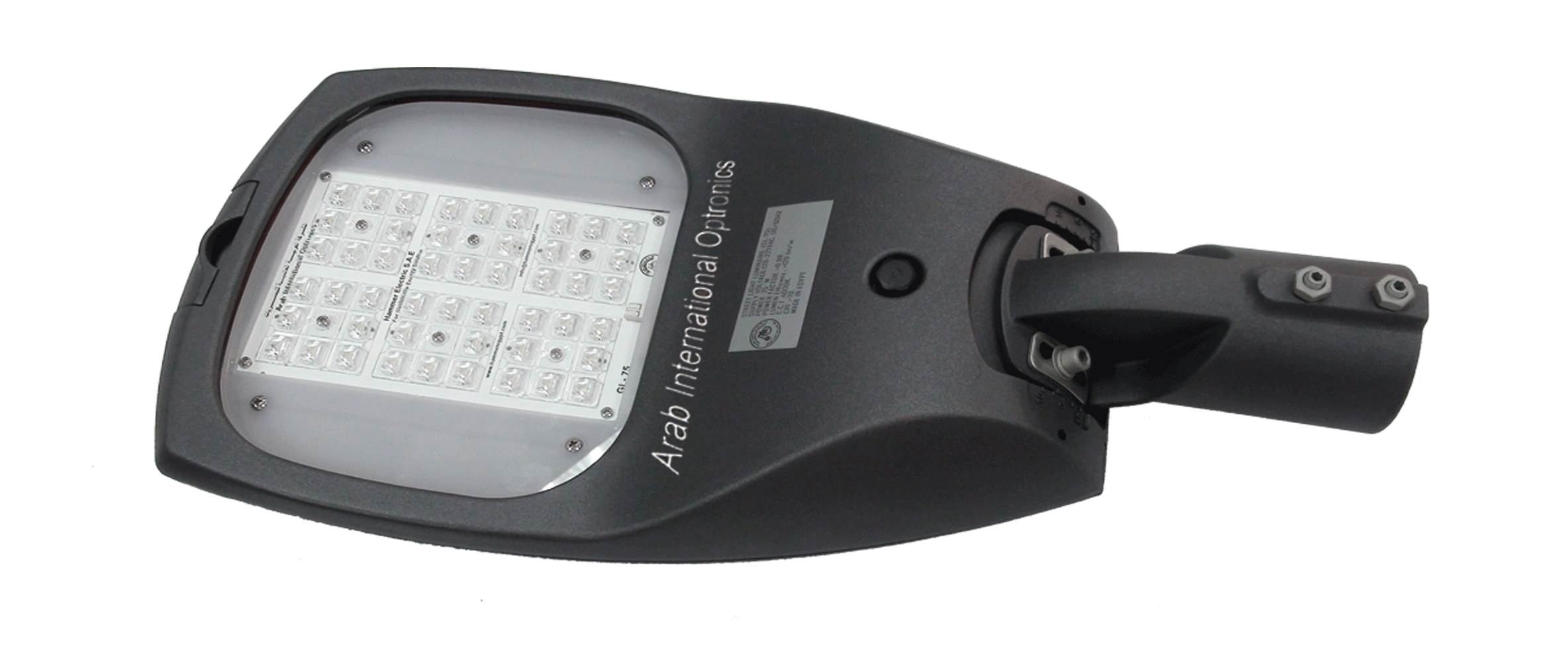

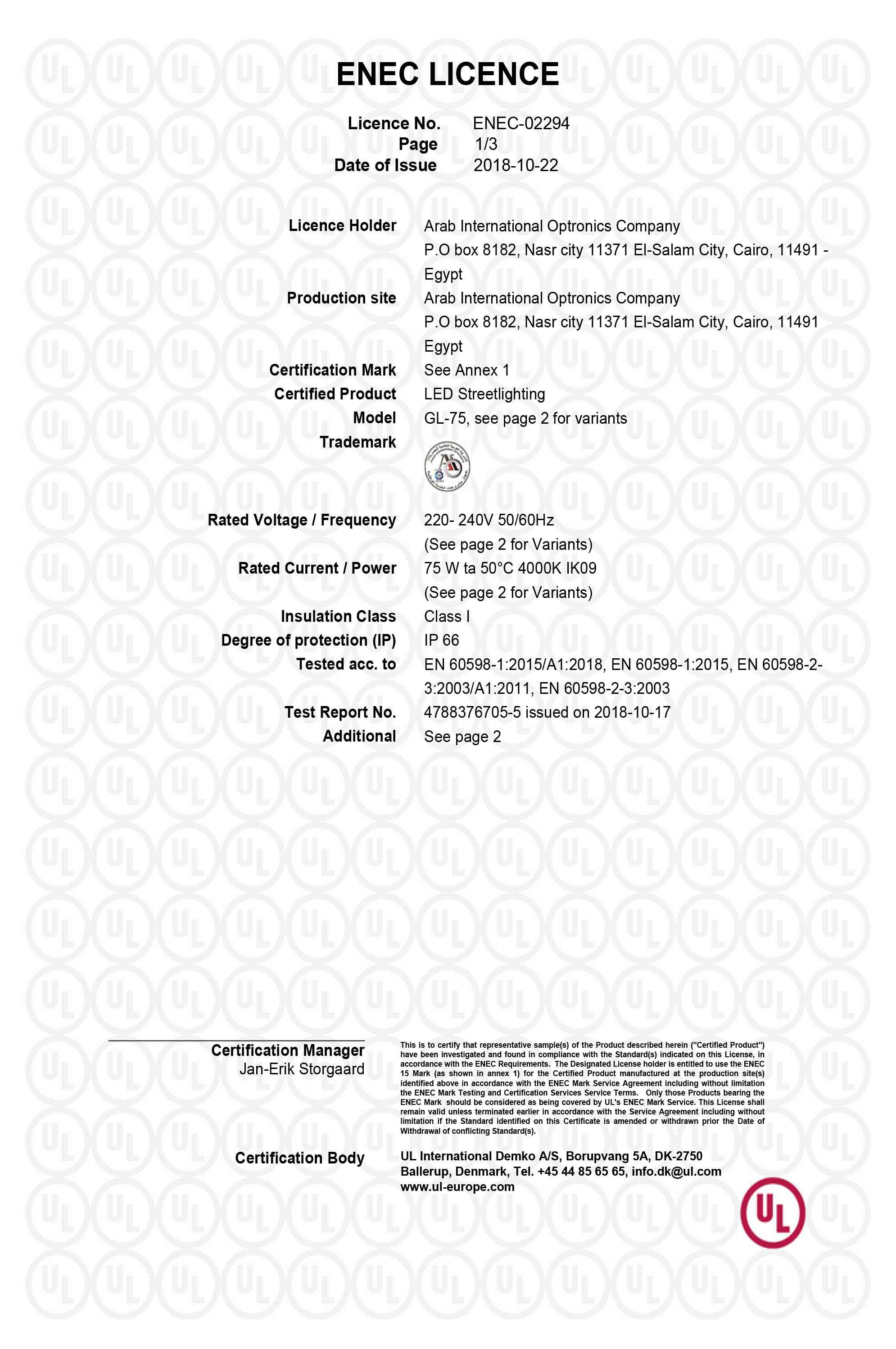

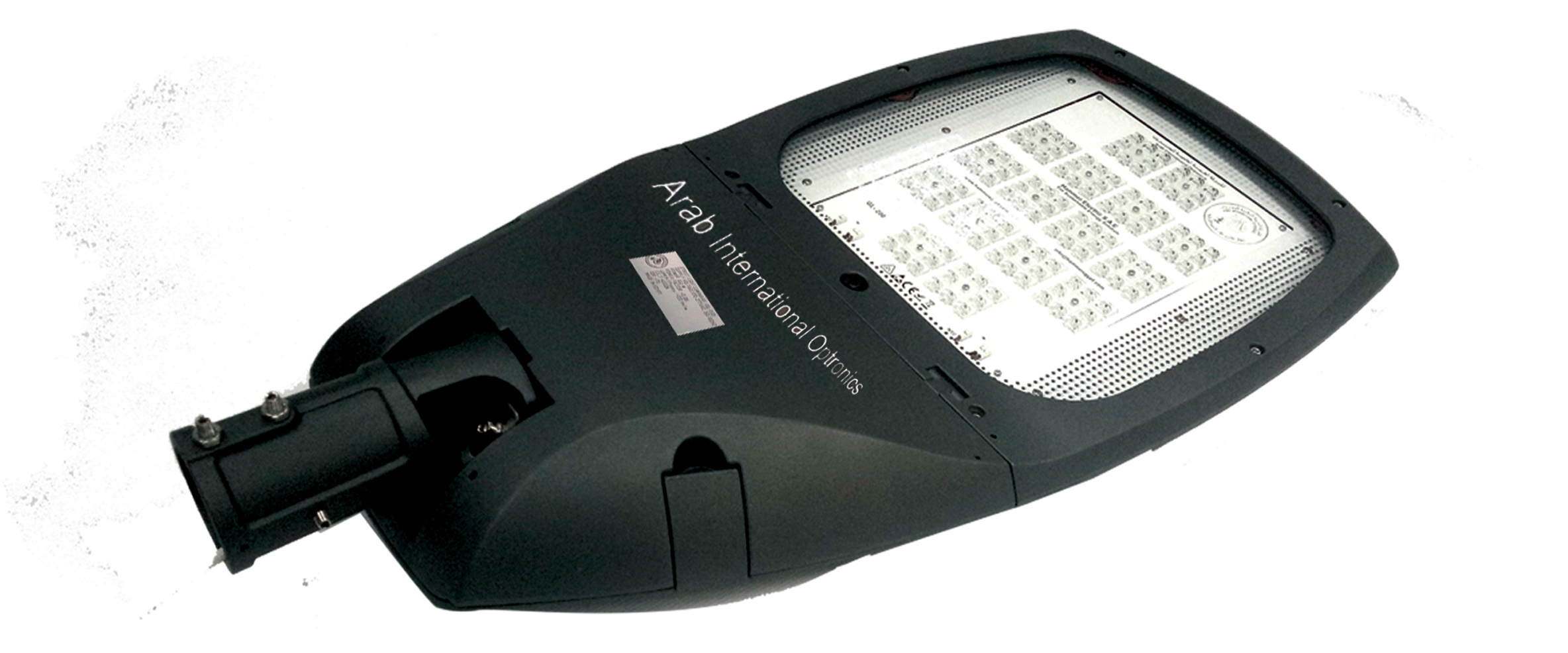

LED STREET LUMINAIRE , GLA (45-75) W
W/6.png)
- Power W : (45 - 75) watt
- Lumen Efficacy: 120 Lm/W

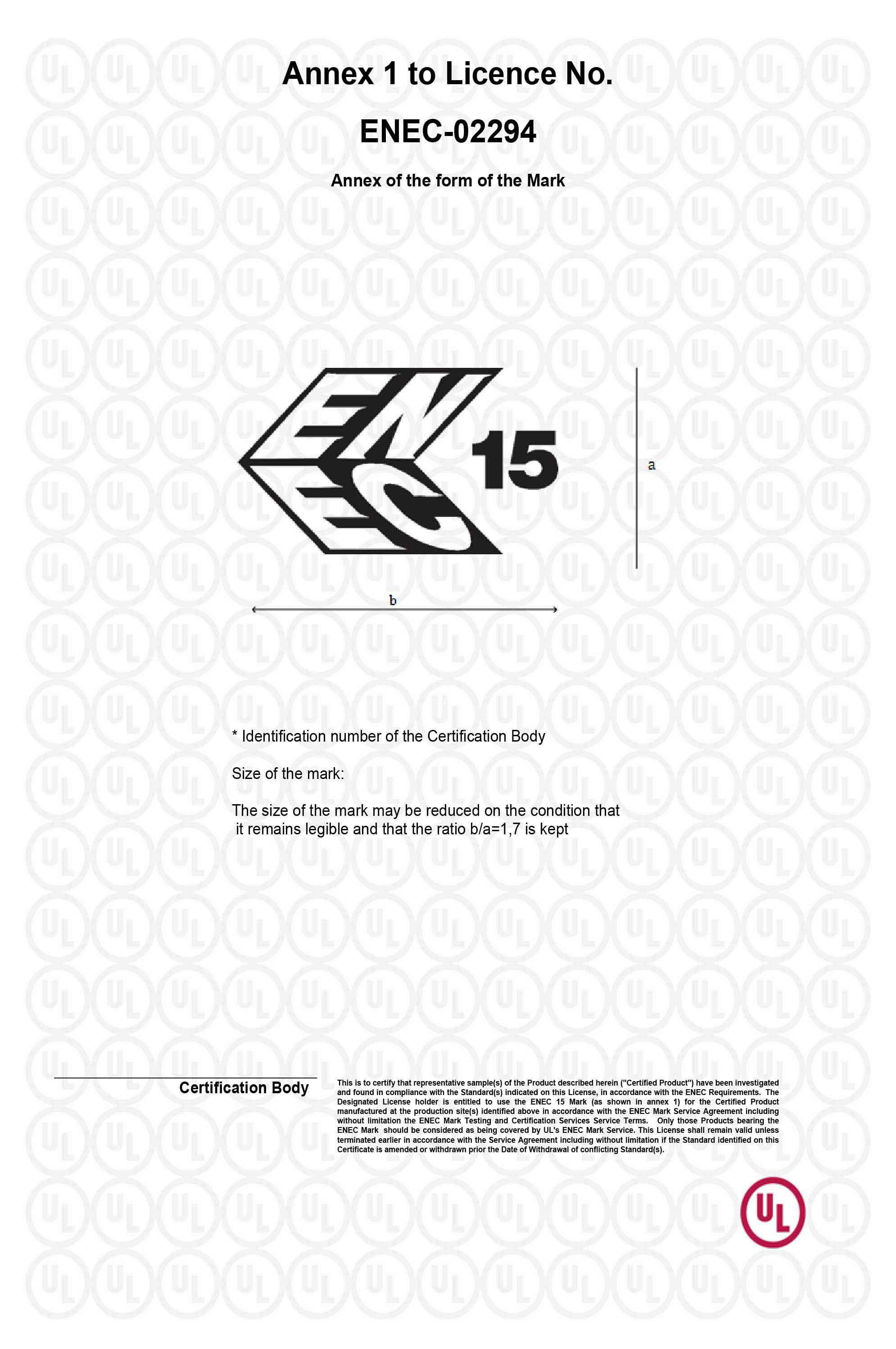

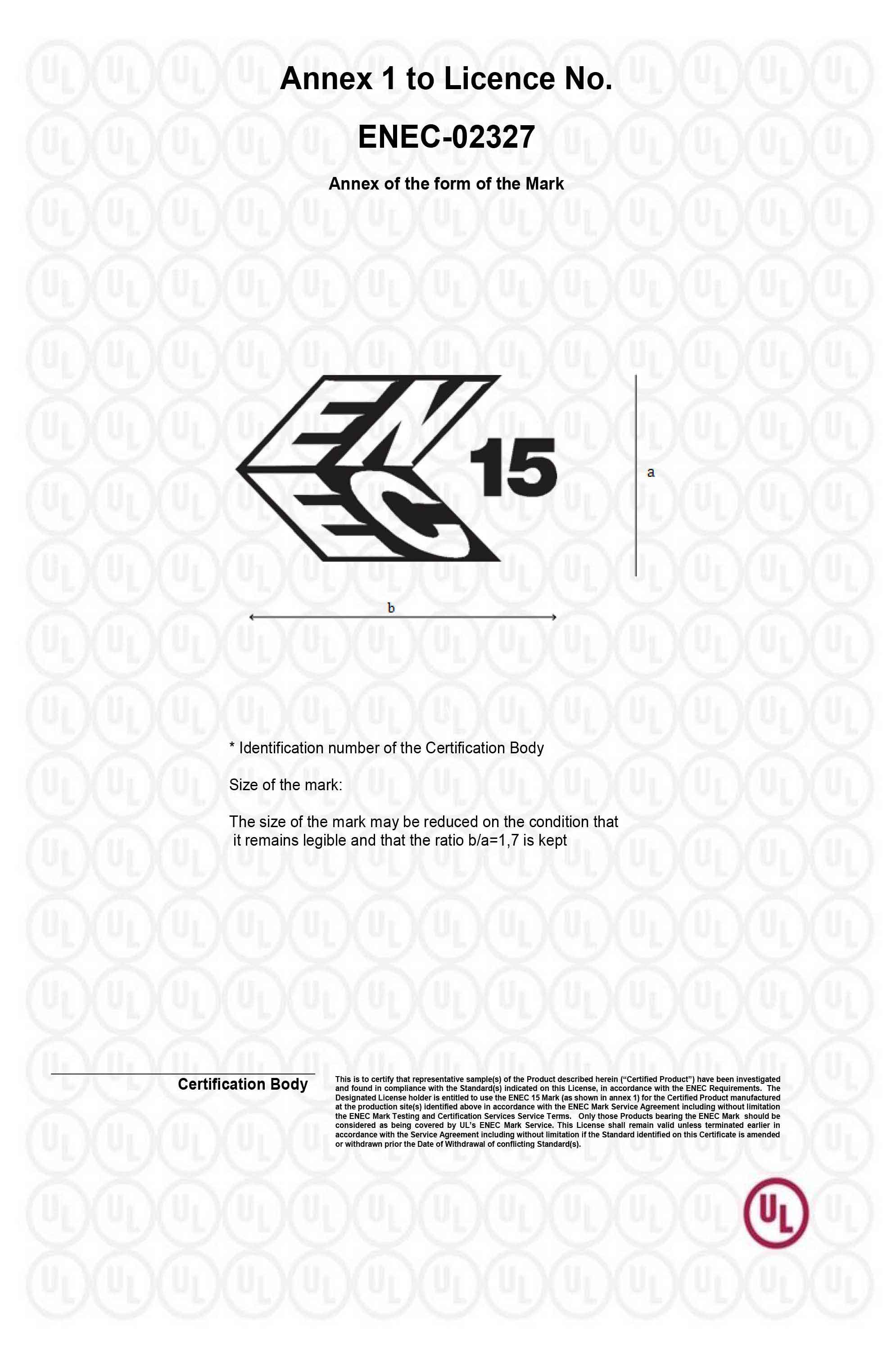

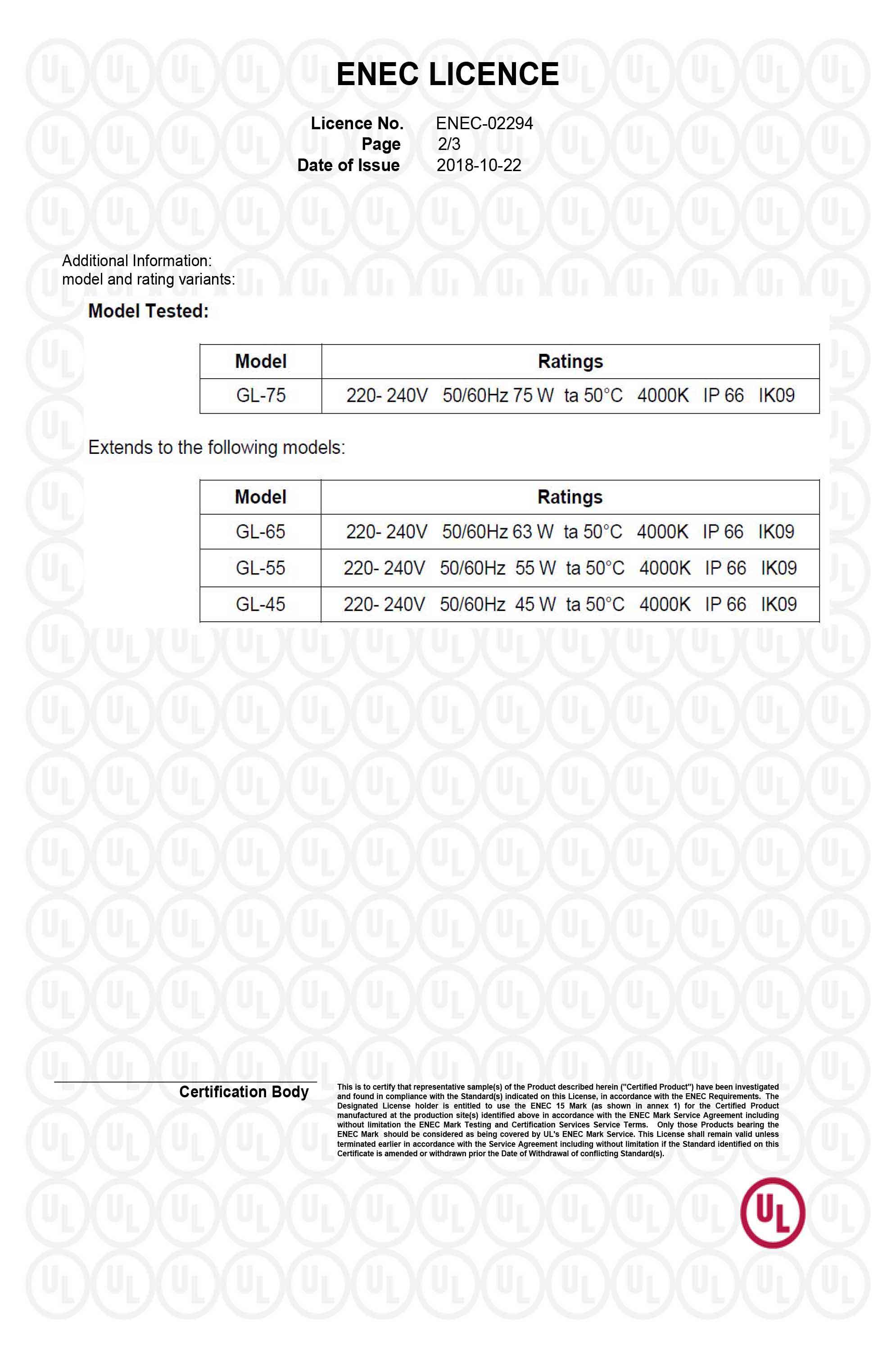

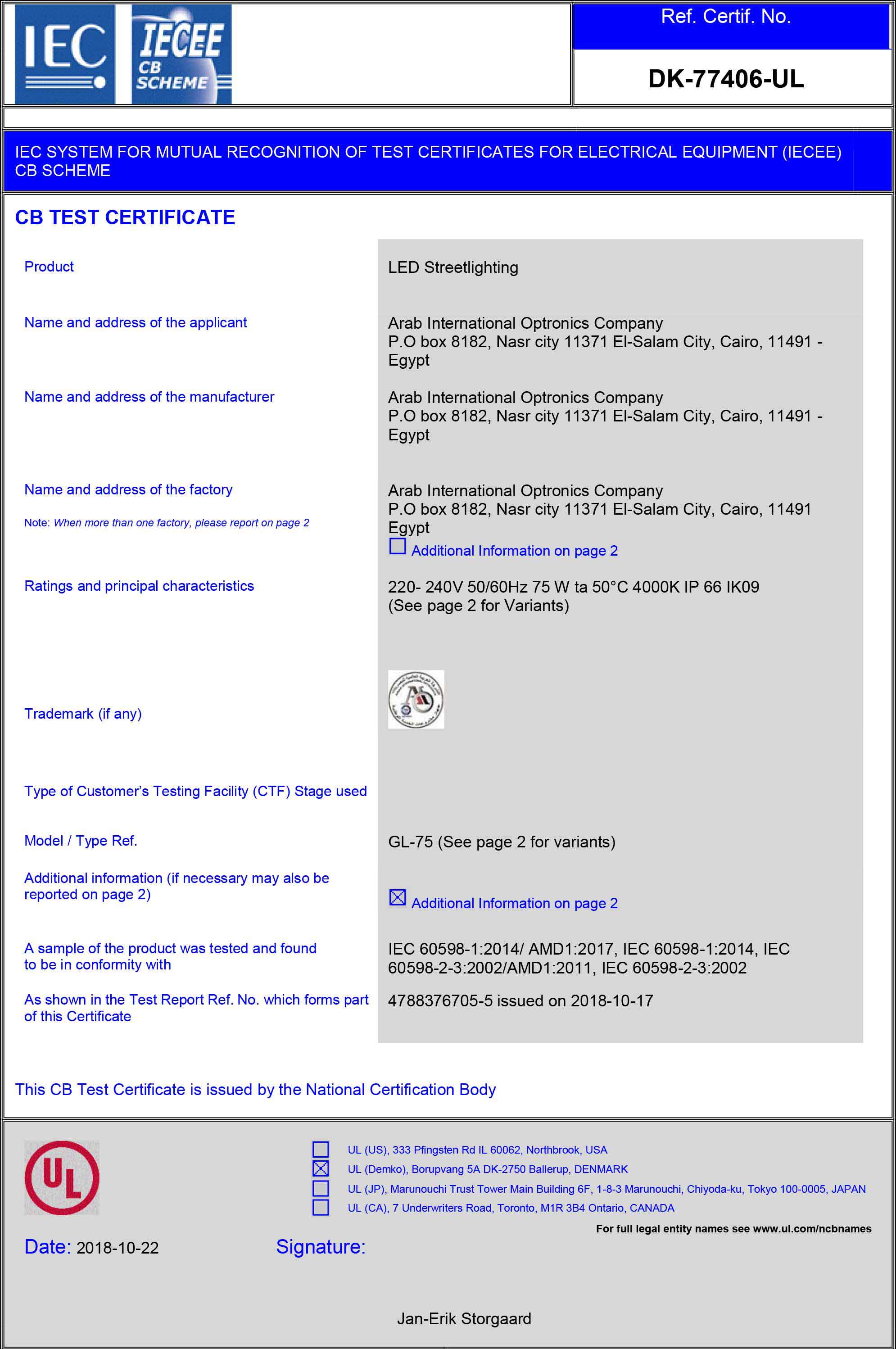

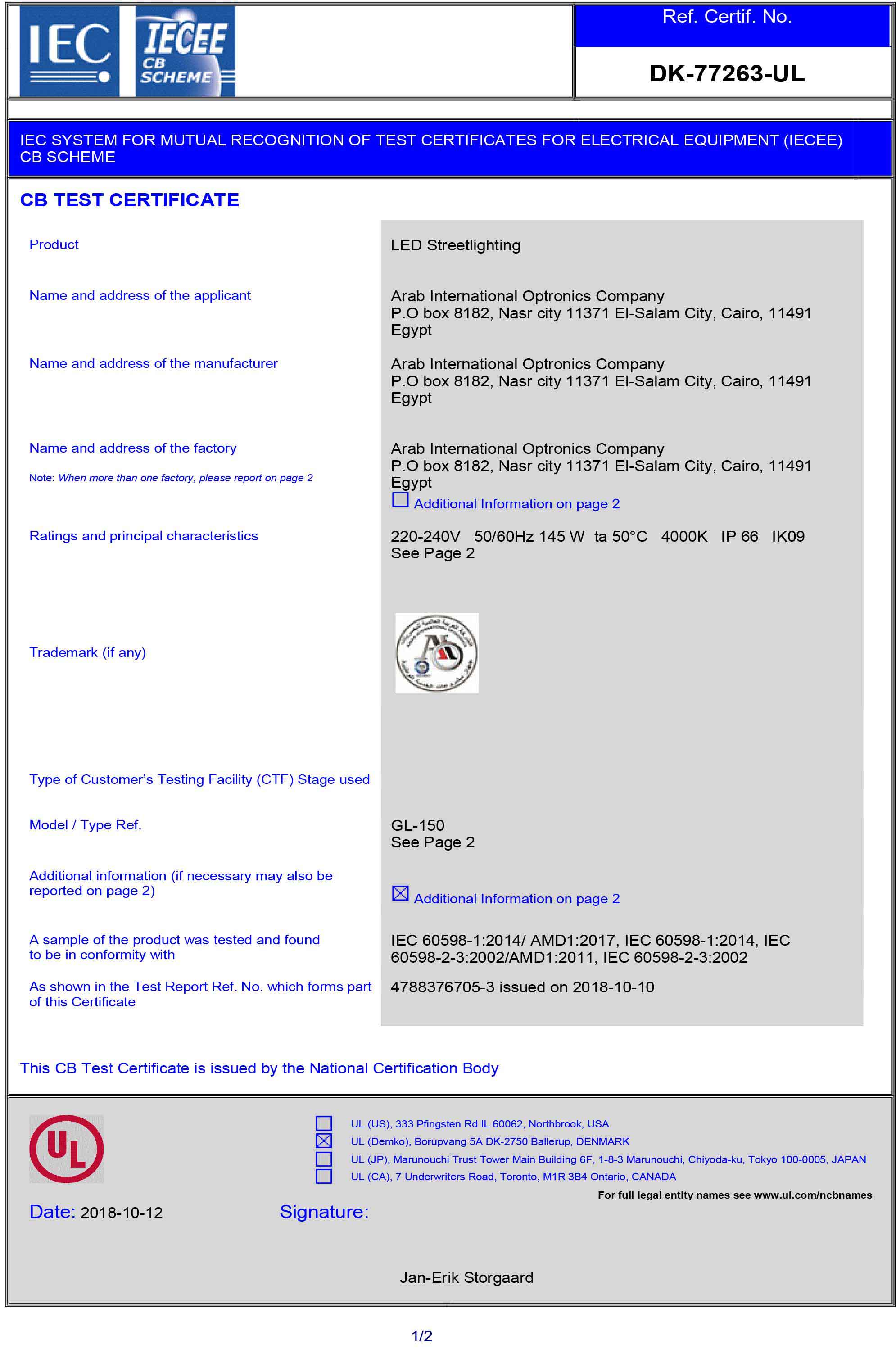

- Certificates of GLA Attached
-
Succeeded tests from UL Laboratory:
ENEC Certificated CB Certificated - LM-79 Test report - LM-82 Test report - LM-80 Test report For LED - ISTMT (35˚C&50˚C Test report - TM21 Test report - Photo - Bioligical Test report - IK09 Test report - IP 66 Test report - Alumunum alloy test report - vibration test report - Salt Spray test report - Glass fraction test report - Aerodynamic test report
W/1.jpg)
W/2.jpg)
W/3.jpg)
W/4.jpg)
W/5.jpg)

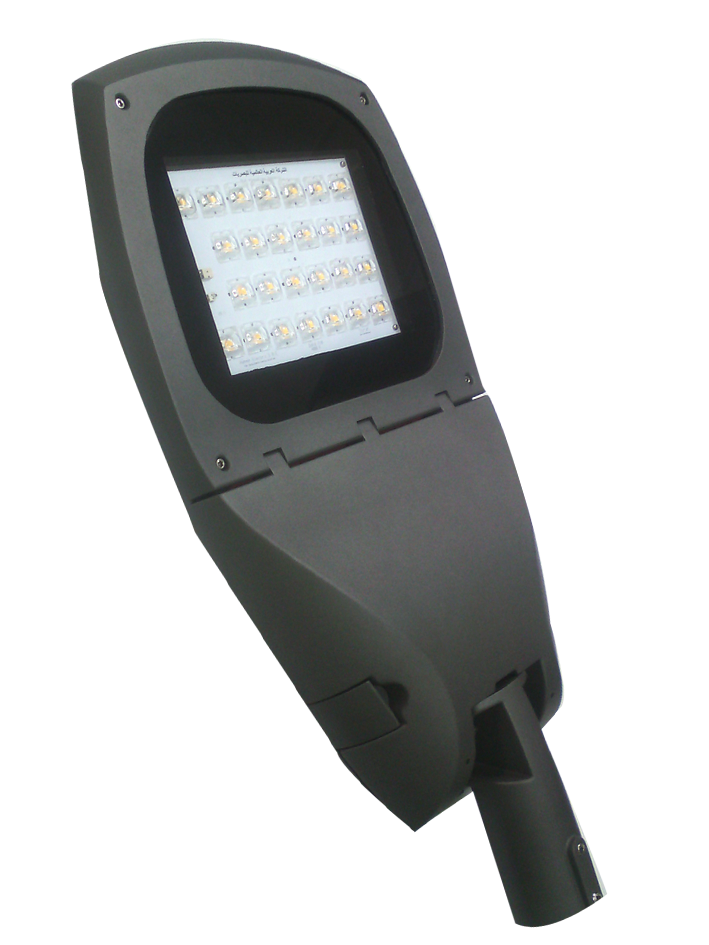

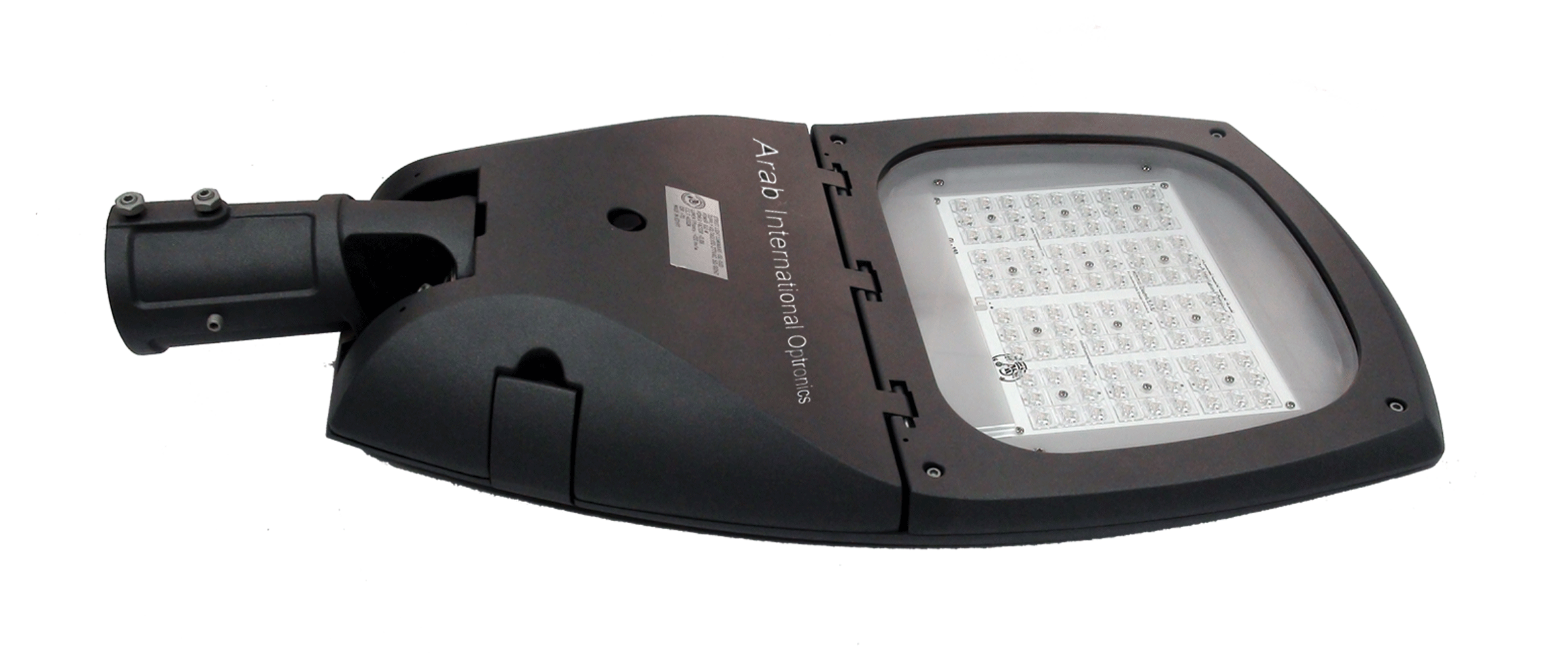

LED STREET LUMINAIRE , GLB (85-120) W
W/1.png)
- Power W : (85 - 120) watt
- Lumen Efficacy: 120 Lm/W

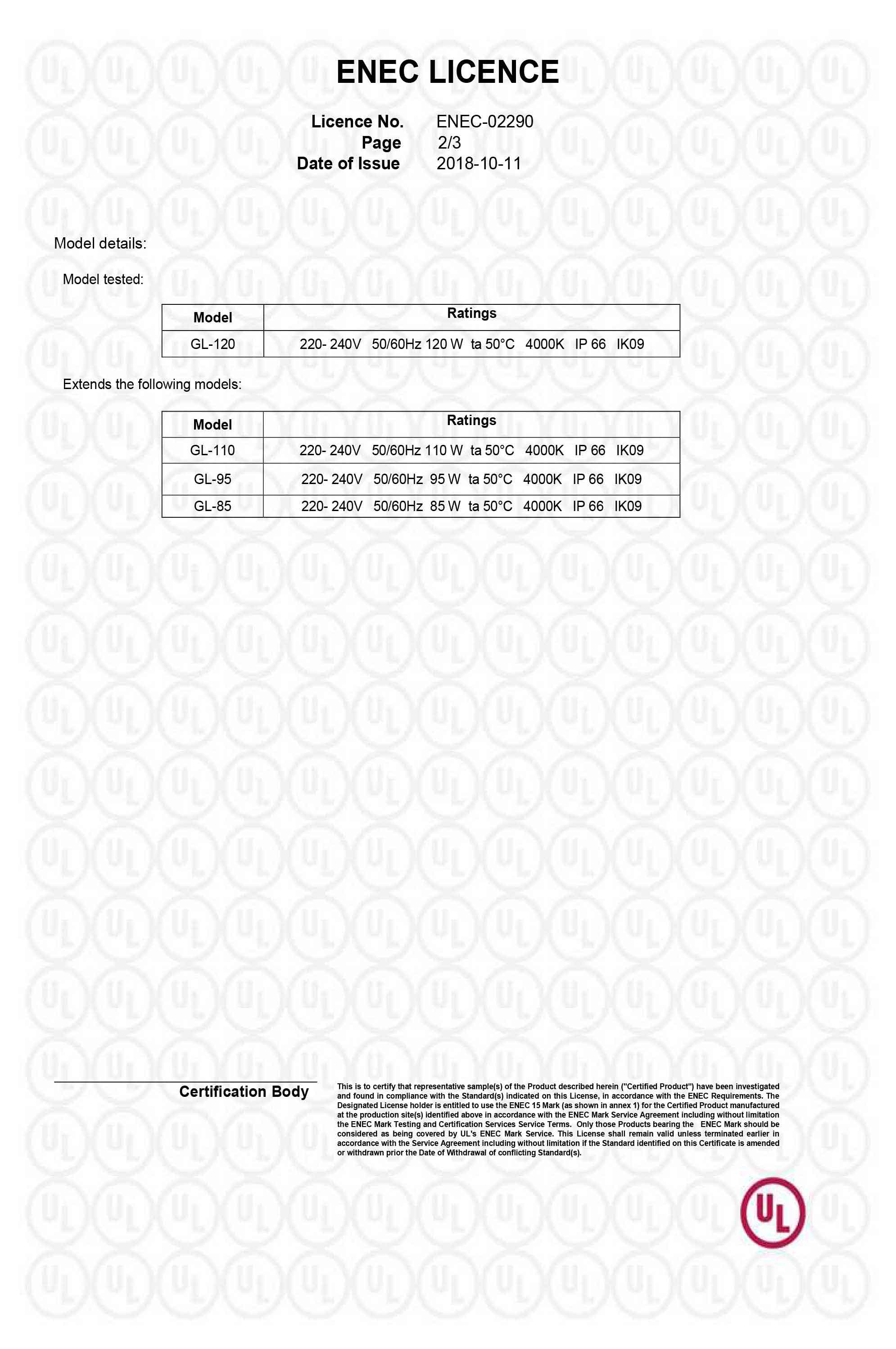

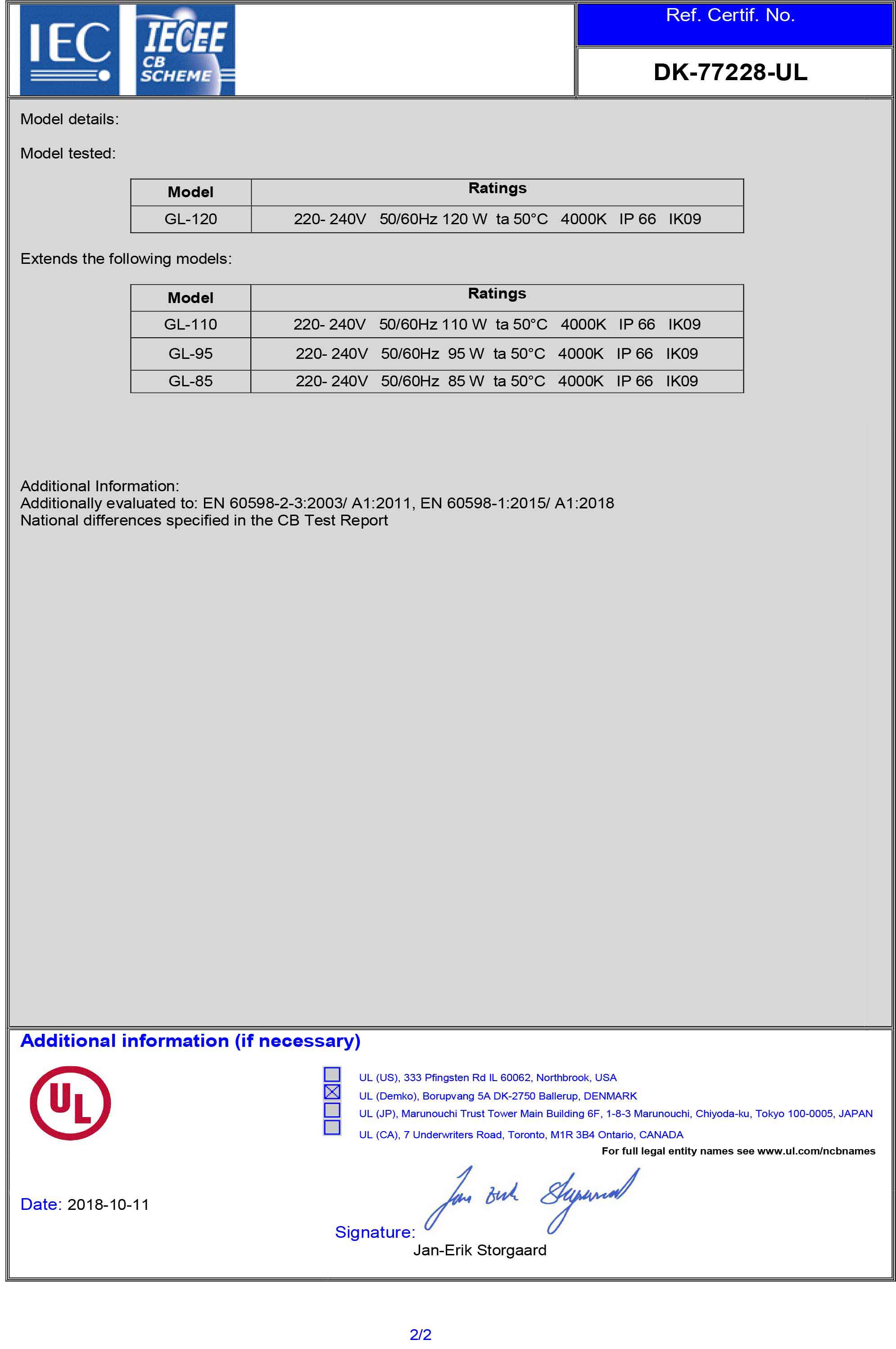

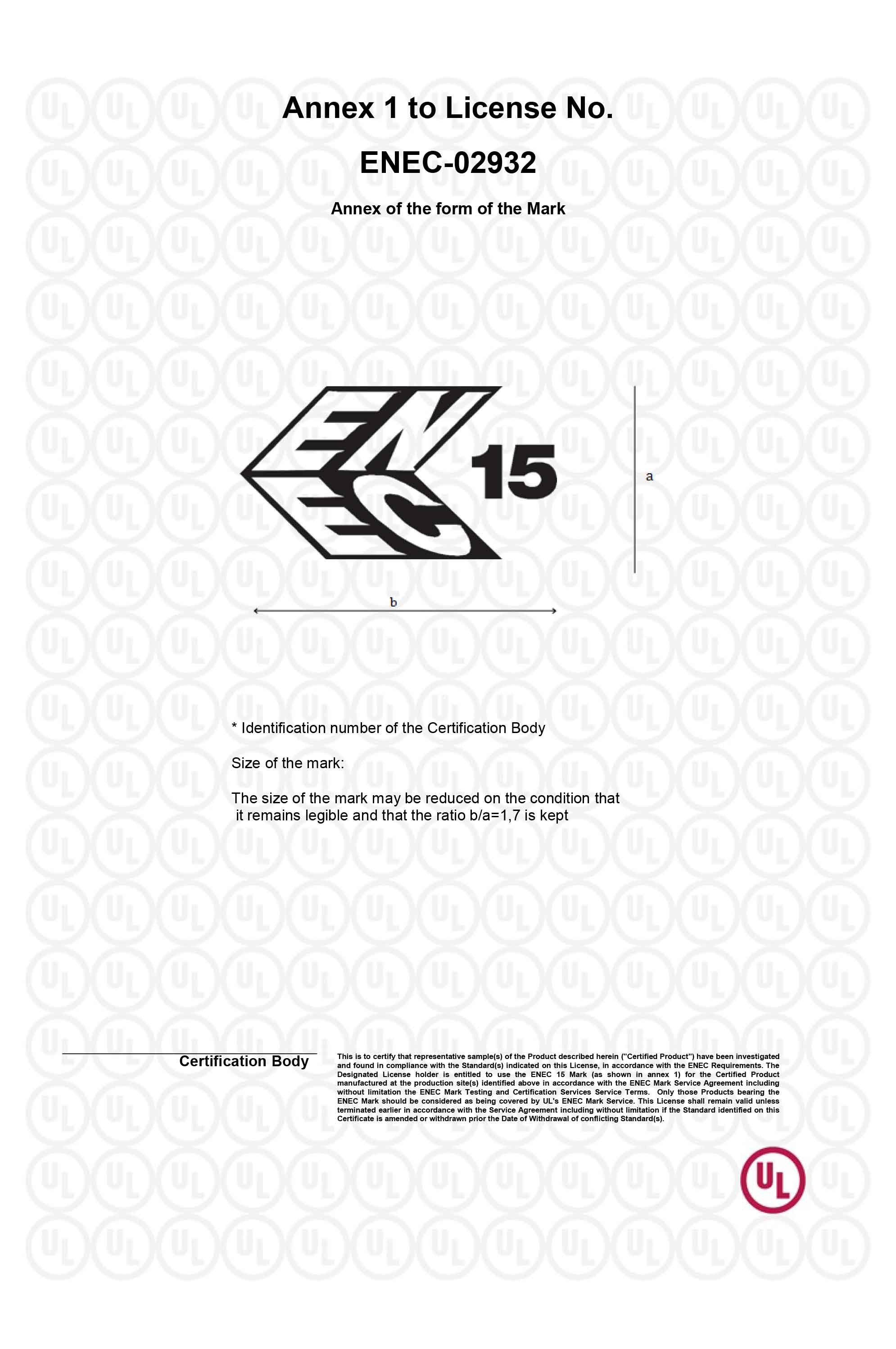

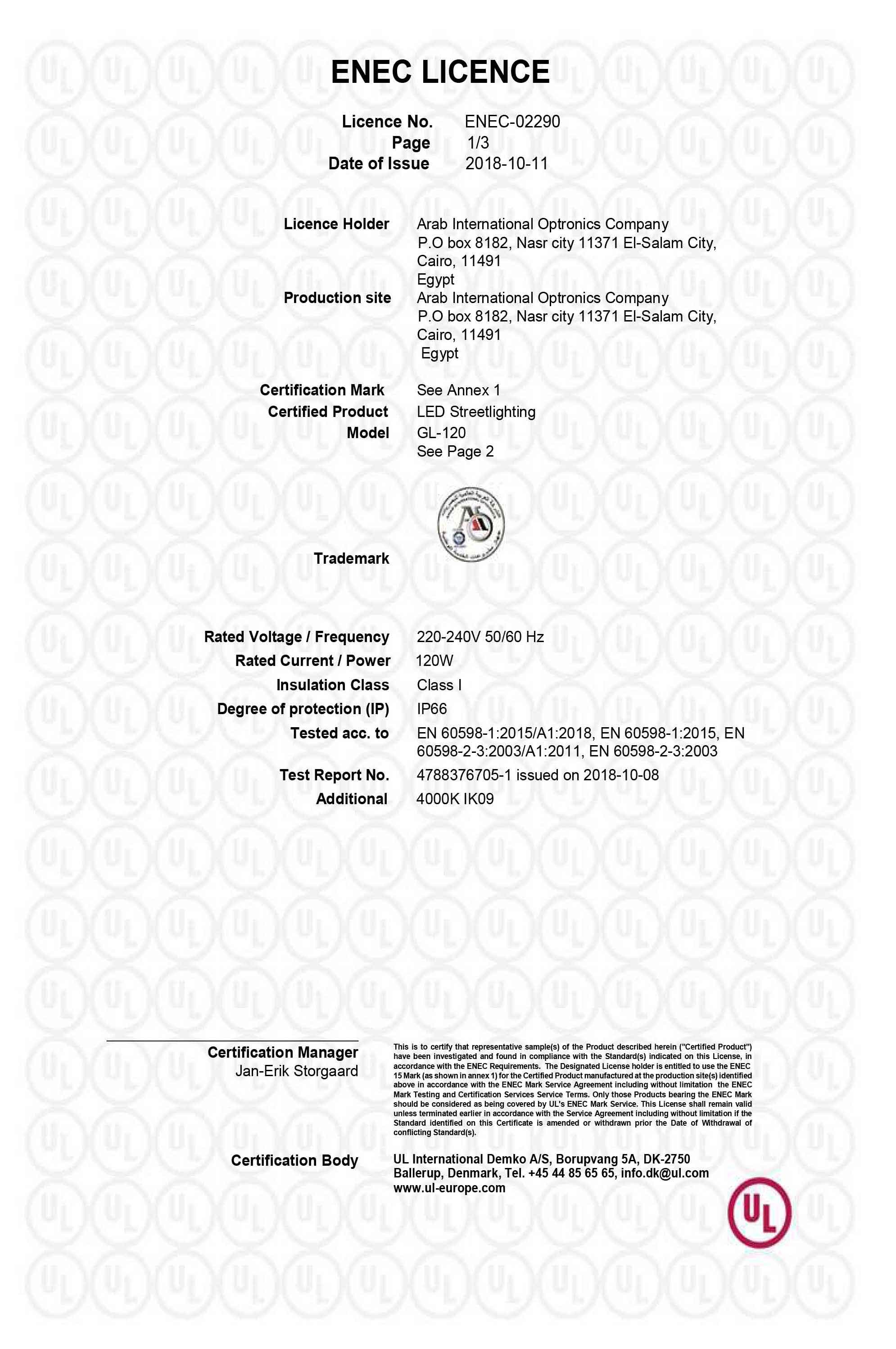

- Certificates of GLB Attached
-
Succeeded tests from UL Laboratory:
UL Certificated ENEC Certificated - CB Certificated - LM-79 Test report - LM-82 Test report - LM-80 Test report For LED - ISTMT (35˚C&50˚C Test report - TM21 Test report - Photo - Bioligical Test report - IK09 Test report - IP 66 Test report - Alumunum alloy test report - vibration test report - Salt Spray test report - Glass fraction test report - Aerodynamic test report -
W/2.jpg)
W/3.jpg)
W/4.jpg)
W/5.jpg)
W/6.jpg)
LED STREET LUMINAIRE , GLC (130-150) W
W/1.png)
- Power W : (130 - 150) watt
- Lumen Efficacy: 120 Lm/W

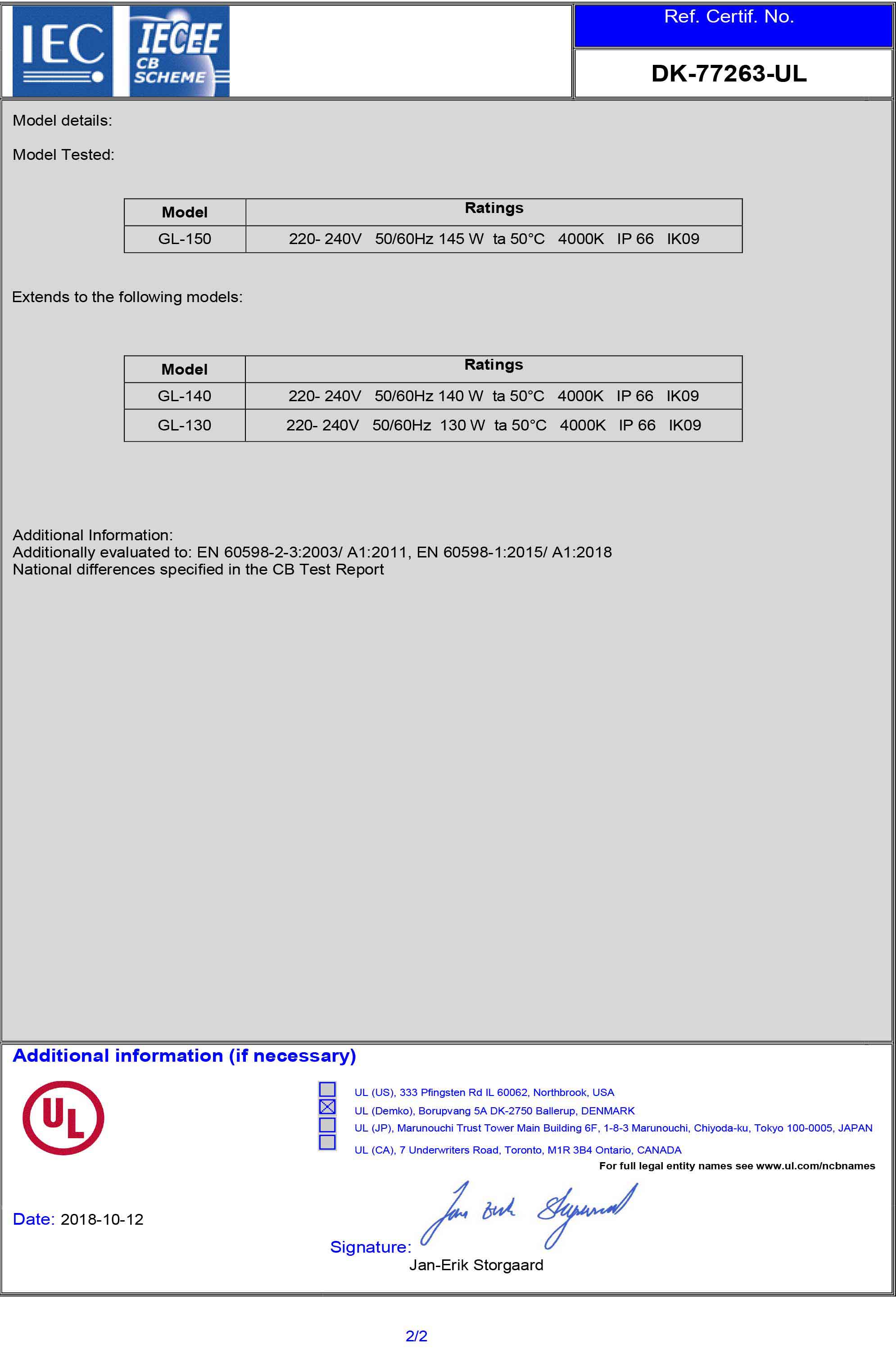

- Certificates of GLC Attached
-
Succeeded tests from UL Laboratory:
ENEC Certificated CB Certificated - LM-79 Test report - LM-82 Test report - LM-80 Test report For LED - ISTMT (35˚C&50˚C ) Test report - TM21(35˚C&50˚C )Test report - Photo - Bioligical Test report - IK09 Test report - IP 66 Test report - Alumunum alloy test report - static load test report
W/2.jpg)
W/3.jpg)
W/4.jpg)
W/5.jpg)
W/6.jpg)

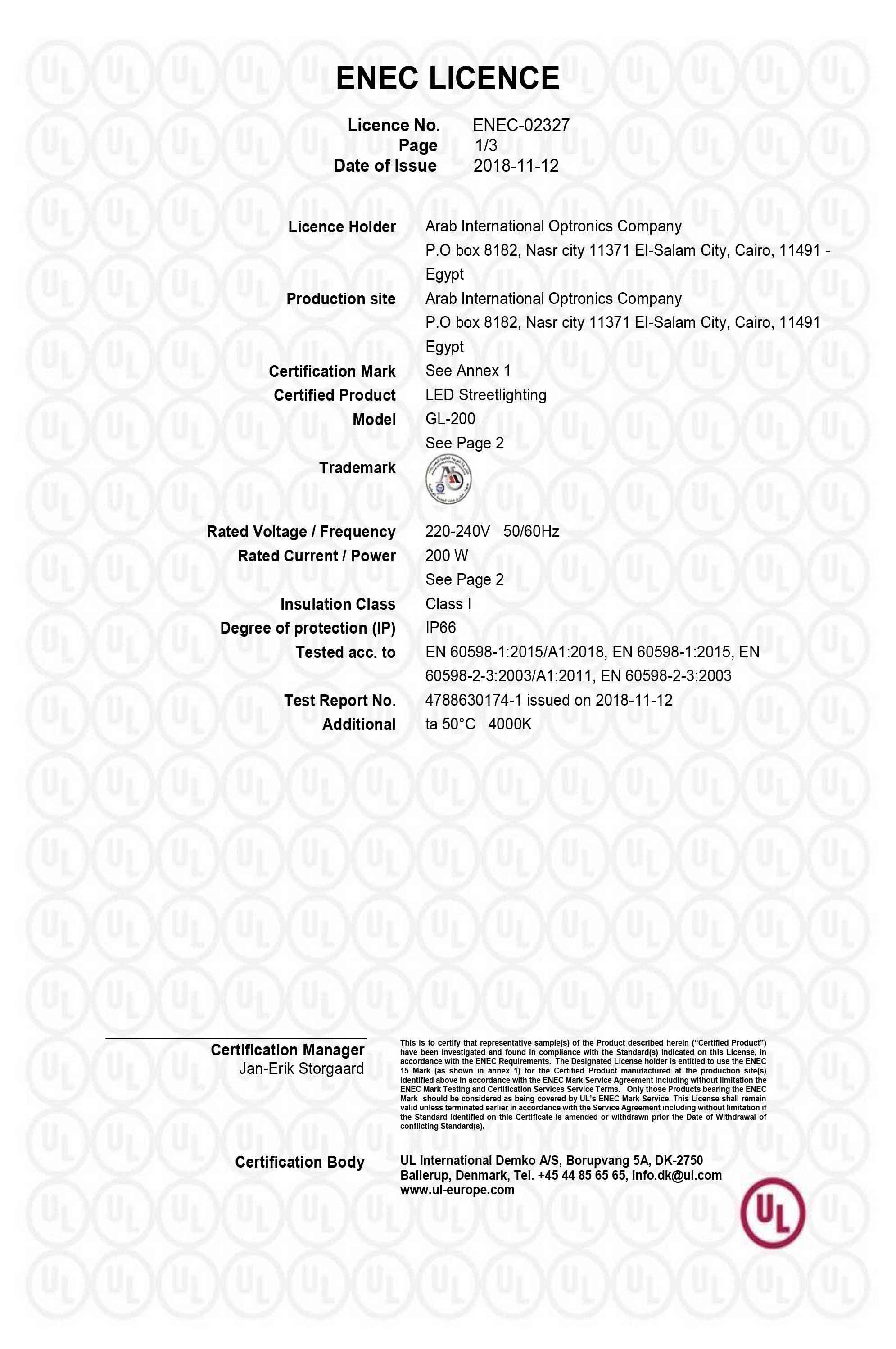

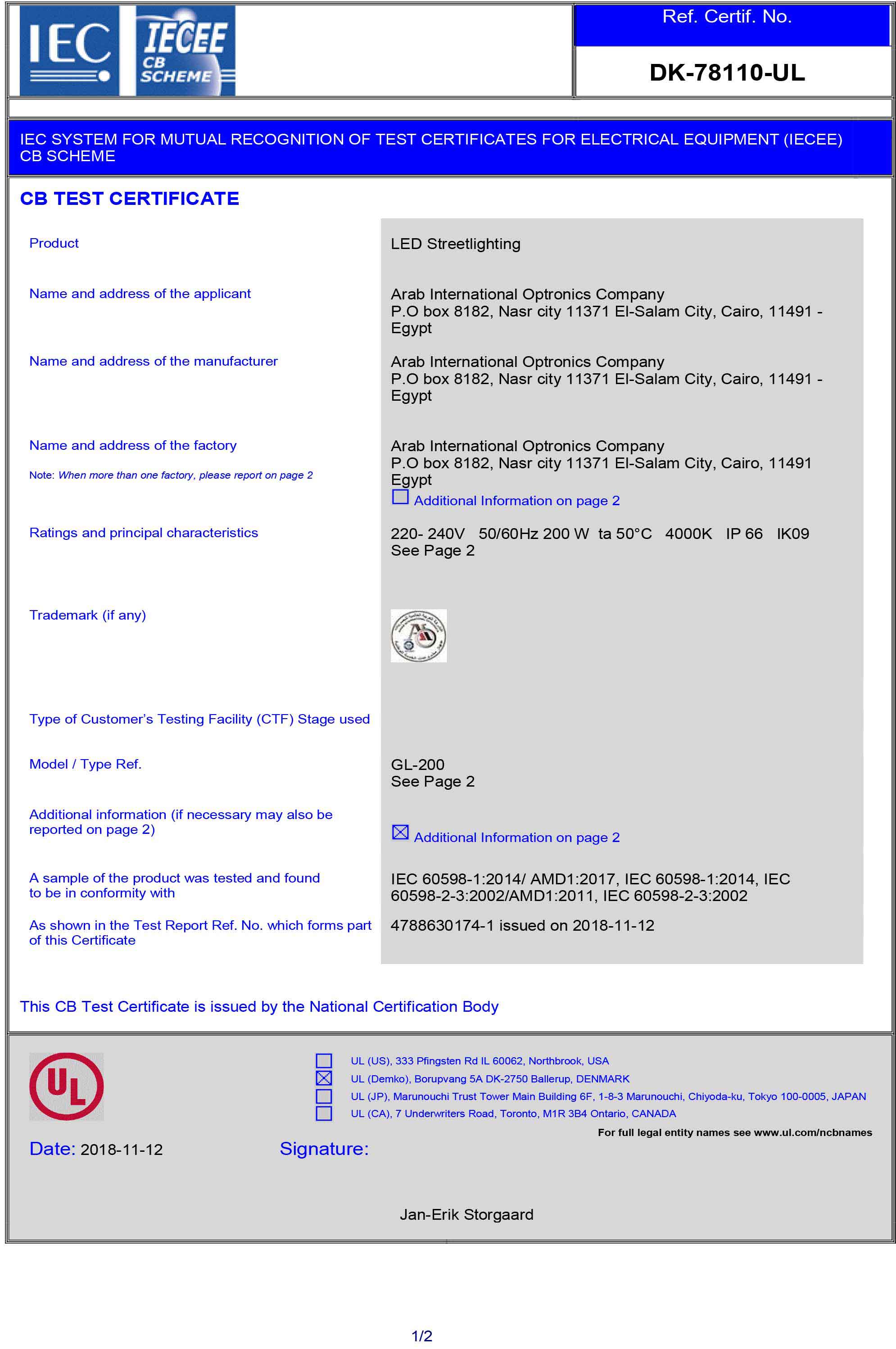

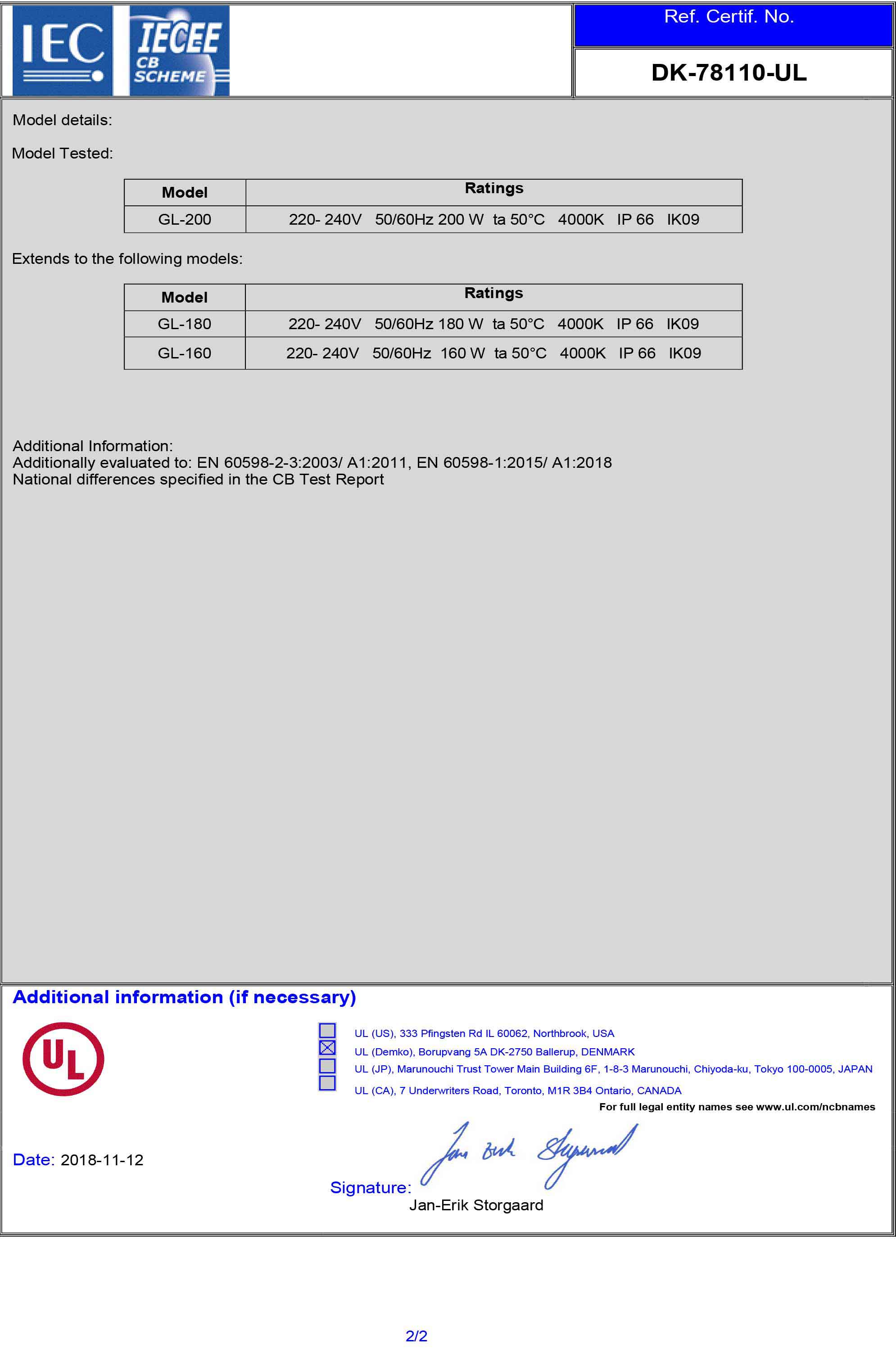

LED STREET LUMINAIRE , GLD (160-200) W
W/1.png)
- Power W : (160 - 200) watt
- Lumen Efficacy: 120 Lm/W
- Certificates of GLD Attached
-
Succeeded tests from UL Laboratory:
ENEC Certificated - CB Certificated - LM-79 Test report - LM-82 Test report - LM-80 Test report For LED - ISTMT (35˚C&50˚C ) Test report - TM21(35˚C&50˚C )Test report - Photo - Bioligical Test report - IK09 Test report - IP 66 Test report - Alumunum alloy test report - static load test report -
W/2.jpg)
W/3.jpg)
W/4.jpg)
W/5.jpg)
W/6.jpg)

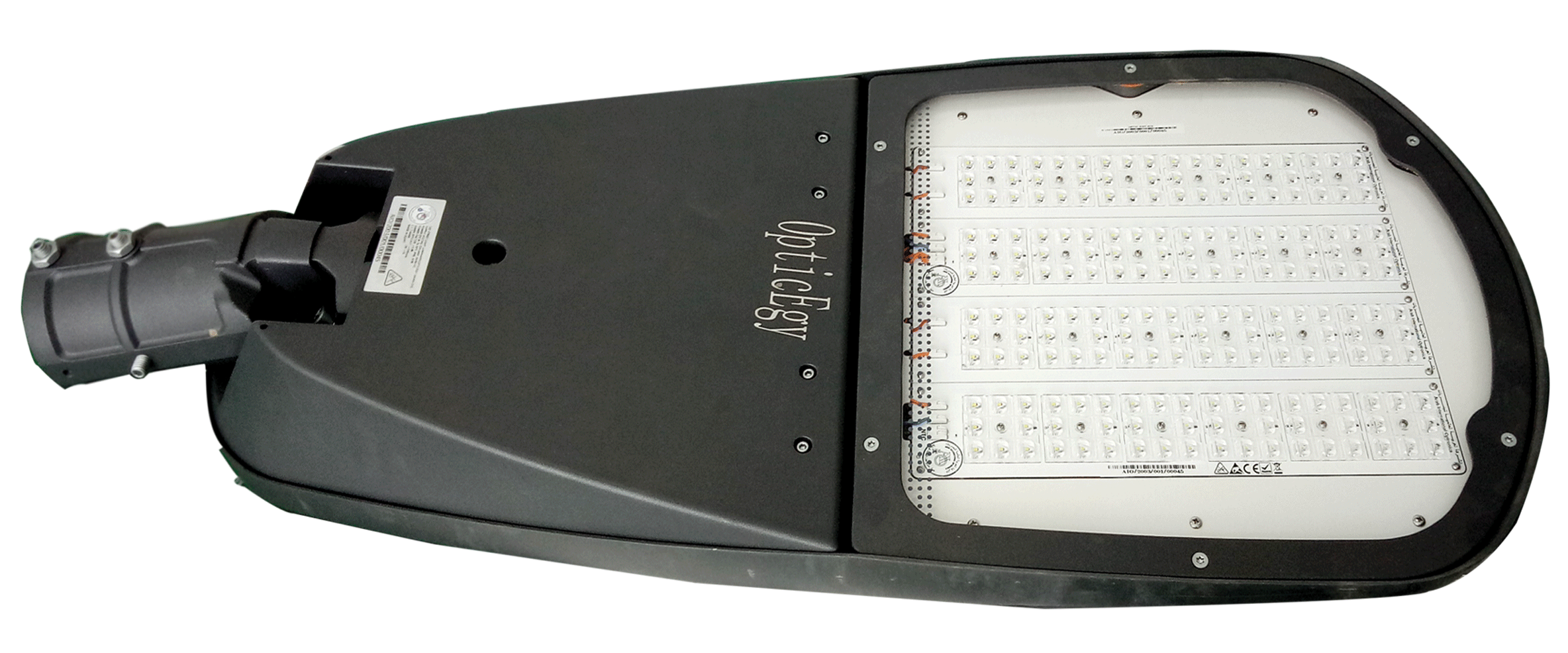

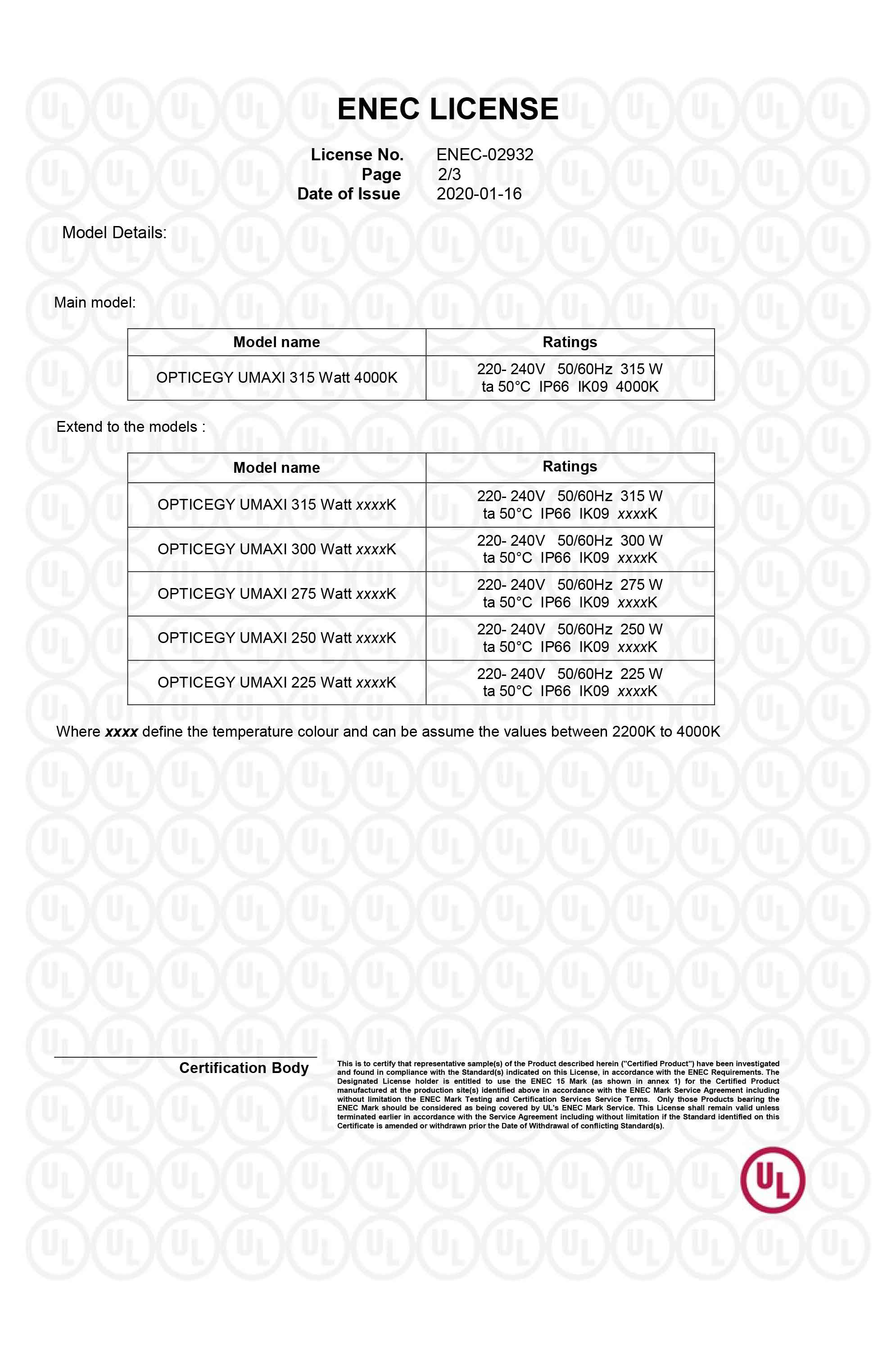

LED STREET LUMINAIRE , Optic Egy UMAXI
- Power W : (225 - 315) watt
- Lumen Efficacy: 135 Lm/W

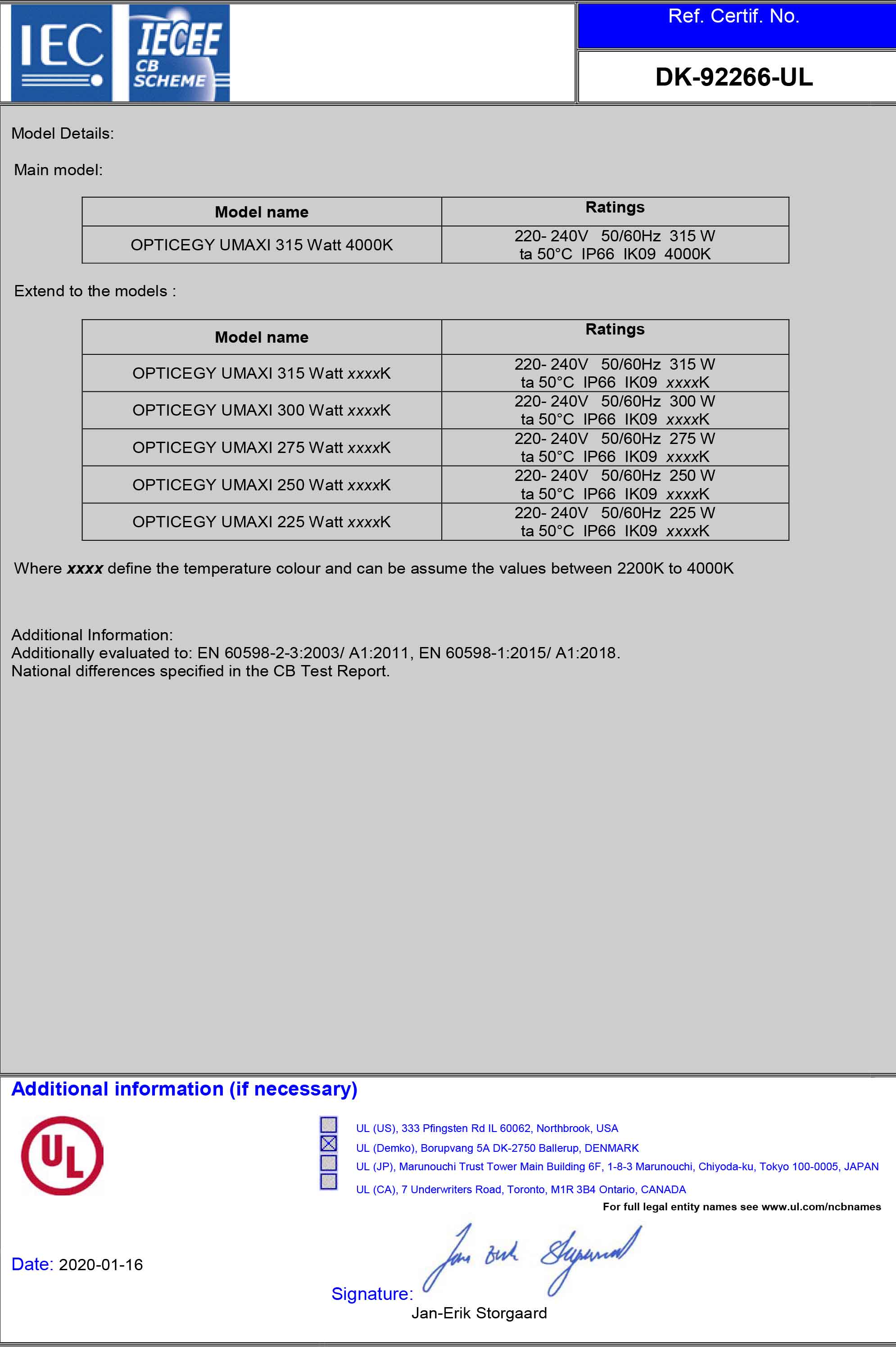

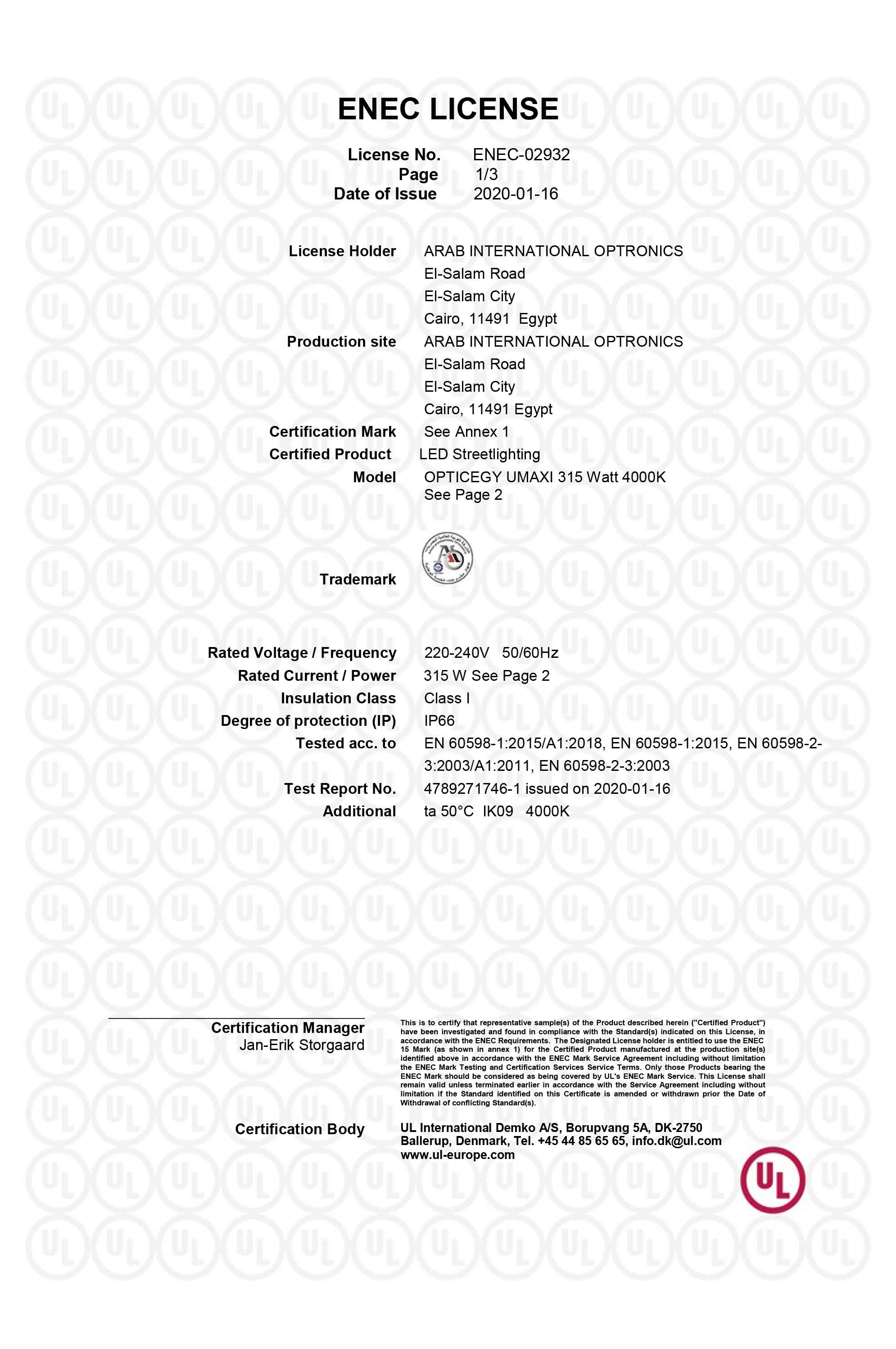

- Certificates of Optic Egy Attached
-
Succeeded tests from UL Laboratory:
LM-79 Test report - LM-82 Test report - LM-80 Test report For LED - ISTMT (35˚C&50˚C ) Test report - TM21(35˚C&50˚C )Test report - Photo - Bioligical Test report - IK09 Test report - IP 66 Test report - Alumunum alloy test report - vibration test report - Salt Spray test report foe 1000 HRS - EMC test report
